Question
A 1.0m long metallic rod is rotated with an angular frequency of 400 rad $s^{-1}$ about an axis normal to the rod passing through its one end. The other end of the rod is in contact with a circular metallic ring. A constant and uniform magnetic field of 0.5T parallel to the axis exists everywhere. Calculate the emf developed between the centre and the ring.
✓

Answer

Length of the rod, l = 1m
Angular frequency, $\omega=400\text{ rad/s}$
Magnetic field strength, B = 0.5T
One end of the rod has zero linear velocity, while the other end has a linear velocity of $\text{l}\omega.$
Average linear velocity of the rod, $\text{v}=\frac{\text{l}\omega+0}{2}=\frac{\text{l}\omega}{2}$
Emf developed between the centre and the ring,
$\text{e}=\text{Blv}=\text{Bl}\Big(\frac{\text{l}\omega}{2}\Big)=\frac{\text{B}\text{l}^2\omega}{2}$
$=\frac{0.5\times(1)^2\times400}{2}=100\text{V}$
Hence, the emf developed between the centre and the ring is 100V.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "2 Marks Questions" from Electromagnetic Induction→Electromagnetic Induction — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

If the radius of the nucleus of $Al ^{27}$ is 3.6 Fermi , then what will be the radius of the $Fe ^{125}$ nucleus?
→
State the types of electric charge. Who coined these names?
→
Explain quantisation of charge.
→
Draw a plot of potential energy of a pair of nucleons as a function of their separation. Write two important conclusions which you can draw regarding the nature of nuclear forces.
→

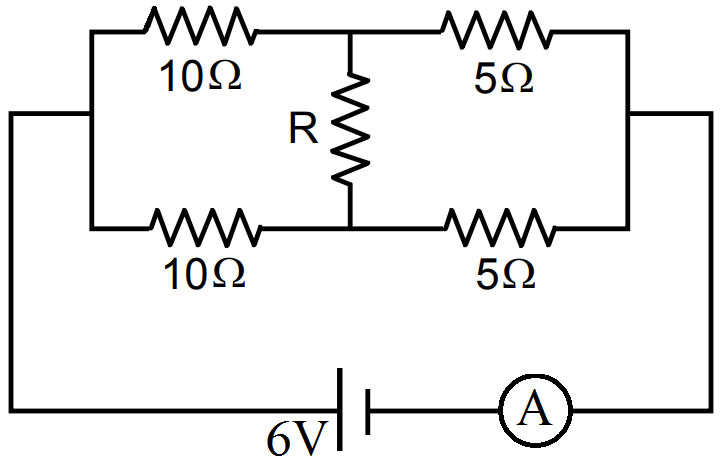

What should be the value of R in the figure. for which the current in it is zero?
→
