$A$ block placed on a rough inclined plane of inclination $(\theta =30^o)$ can just be pushed upwards by applying $a$ force $"F"$ as shown. If the angle of inclination of the inclined plane is increased to $(\theta = 60^o)$, the same block can just be prevented from sliding down by application of a force of same magnitude. Thecoefficient of friction between the block and the inclined plane is
Advanced
Download our app for free and get startedPlay store

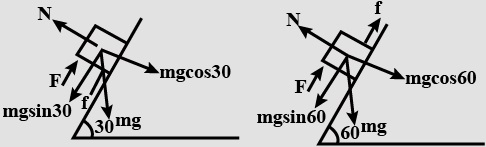

The friction force in the first case is in the downward direction and in the second case it is in the upward direction. From $FBD,$

when $\left.\theta=30^{\circ}, F-m g \sin 30^{\circ}-\mu m g \cos 30^{\circ}=0 \ldots \ldots \text { ( } 1\right)$

when $\left.\theta=60^{\circ}, F+\mu m g \cos 60^{\circ}-m g \sin 60^{\circ}=0 \ldots \ldots \text { ( } 2\right)$

using $(1),(2),$ becomes, $m g \sin 30^{\circ}+\mu m g \cos 30^{\circ}=-\mu m g \cos 60^{\circ}+m g \sin 60^{\circ}$

or

$\mu\left(\cos 60^{\circ}+\cos 30^{\circ}\right)=\sin 60^{\circ}-\sin 30^{\circ}$

Or

 $\mu\left(\frac{1}{2}+\frac{\sqrt{3}}{2}\right)=\frac{\sqrt{3}}{2}-\frac{1}{2}$

$\therefore \mu=\frac{\sqrt{3}-1}{\sqrt{3}+1}$
