Question

A book with many printing errors contains four different formulas for the displacement y of a particle undergoing a certain periodic motion:

$\text{y}=\text{a}\sin2\pi\text{ t/T}$
$\text{y}=\text{a}\sin \text{vt}$
$\text{y}=(\text{a/T})\sin\text{t/a}$
$\text{y}=(\text{a}\sqrt{2})(\sin2\pi\text{t/T}+\cos2\pi\text{t/T})$

(a = maximum displacement of the particle, v = speed of the particle. T = time-period of motion). Rule out the wrong formulas on dimensional grounds.

✓

Answer

The displacement y has the dimension of length, therefore, the formula for it should also have the dimension of length. Trigonometric functions are dimensionless and their arguments are also dimensionless. Based on these considerations now check each formula .

$\frac{2\pi\text{t}}{\text{T}}=\frac{\text{T}}{\text{T}}=1=(\text{M}^0\text{L}^0\text{T}^0)\ \ \dots\text{dimensionless}$
$\text{vt}=(\text{LT}^{-1})(\text{T})=\text{L}=\big[\text{M}^0\text{L}^0\text{T}^0\big]\ \ \dots\text{not dimensionless}$
$\frac{\text{t}}{\text{a}}=\frac{\text{T}}{\text{L}}=[\text{L}^{-1}\text{T}^1]\ \ \dots\text{not dimensionless}$
$\frac{2\pi\text{t}}{\text{T}}=\frac{\text{T}}{\text{T}}=1=\big[\text{M}^0\text{L}^0\text{T}^0\big]\ \ \dots\text{dimensionless}$

dimensionally.

The formulas in (ii) and (iii) are dimensionally wrong.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Units and Measurements→Units and Measurements — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

Two starts each of one solar mass (= 2 × 10³⁰ kg) are approaching each other for a head on collision. When they are a distance 10⁹ km, their speeds are negligible. What is the speed with which they collide? The radius of each start is 10⁴km. Assume the stars to remain undistorted until they collide. (Use the known value of G).

Two wires are kept tight between the same pair of supports. The tensions in the wires are in the ratio 2 : 1, the radii are in the ratio 3 : 1 and the densities are in the ratio 1 :2. Find the ratio of their fundamental frequencies.

A satellite is projected vertically upwards from an earth station. At what height above the earth's surface will the force on the satellite due to the earth be reduced to half its value at the earth station? (Radius of the earth is 6400km.)

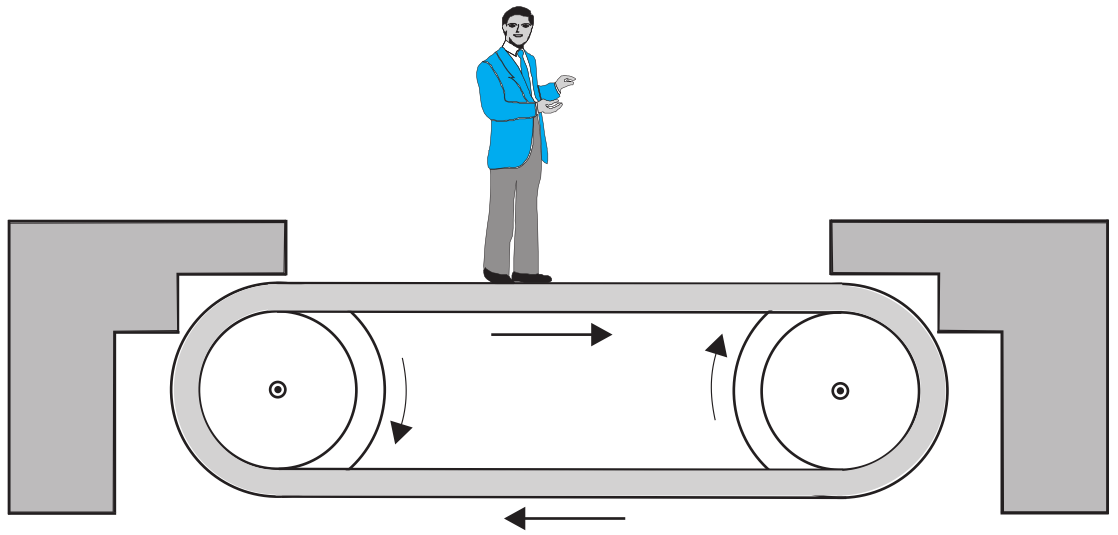

Figure. shows a man standing stationary with respect to a horizontal conveyor belt that is accelerating with 1ms^-2. What is the net force on the man? If the coefficient of static friction between the man’s shoes and the belt is 0.2, up to what acceleration of the belt can the man continue to be stationary relative to the belt? (Mass of the man = 65kg.)
