MODEL PAPER 2025 — Physics STD 12 Science — Question

Bihar BoardEnglish MediumSTD 12 SciencePhysicsMODEL PAPER 20253 Marks
Question
A boy is holding a smooth, hollow and non-conducting pipe vertically with charged spherical ball of mass 10 g carrying a charge of +10 mC inside it which is free to move along the axis of the pipe. The boy is moving the pipe from East to West direction in the presence of magnetic field of 2T. With what minimum velocity, should the boy move the pipe such that the ball does not move along the axis. Also determine the direction of the magnetic field.
✓

Answer

Given
$B=2 T, q=10 mC$, mass of the ball $=10^{-2} kg, g=9.8 m / s ^2$ Magnetic force $(q v B \sin \theta)=$ gravitational force $( mg )$ \[
v=\frac{m g}{q B \sin \theta}
\]
For min. velocity $\sin \theta=1$

$\begin{aligned} v & =\frac{m g}{q B \sin \theta}=v=\frac{m g}{q B} \\ & =\frac{10^{-2} \times 9.8}{10^{-2} \times 2} m / s \\ & =4.9 m / s \\ & v=4.9 m / s ^2\end{aligned}$
As force is in upward direction so from Fleming’s Left-hand rule, magnetic field will be along North to South.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from MODEL PAPER 2025→MODEL PAPER 2025 — all question types→Physics STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

Using Bohr’s postulates, derive the expression for the orbital period of the electron moving in the nth orbit of hydrogen atom.
→
A (i) series (ii) parallel combination of two given resistors is connected, one by one, across a cell. In which case will the terminal potential difference, across the cell have a higher value?
→
Get the electric field due to a uniformly charged thin spherical shell.
→

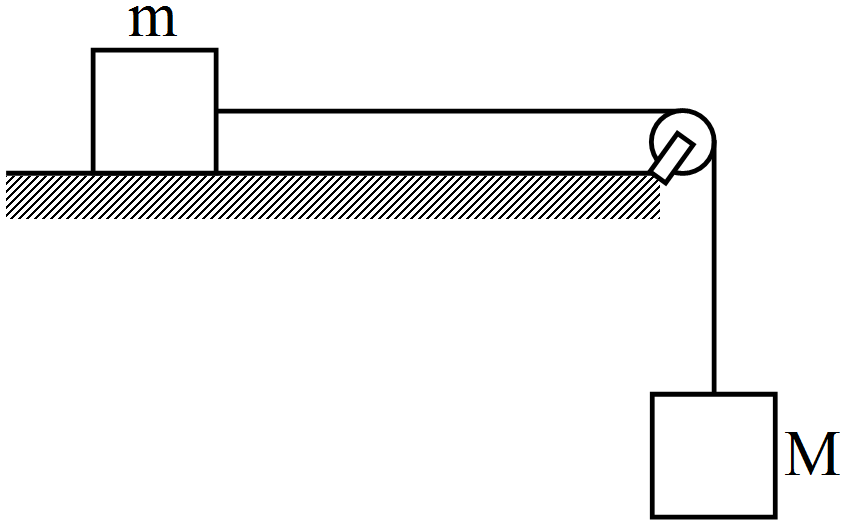

Figure shows two blocks of masses m and M connected by a string passing over a pulley. The horizontal table over which the mass m slides is smooth. The pulley has a radius r and moment of inertia I about its axis and it can freely rotate about this axis. Find the acceleration of the mass M assuming that the string does not slip on the pulley.

→
