Question
A capacitor of capacitance $10\mu\text{F}$ is connected to an oscillator with output voltage $\in=(10\text{V})\sin\omega\text{t}.$ Find the peak currents in the circuit for $\omega=10\text{s}^{-1},100\text{s}^{-1},500\text{s}^{-1},1000\text{s}^{-1}.$
✓

Answer

$\text{C}=10\mu\text{F}=10\times10^{-6}\text{F}=10^{-5}\text{F}$$\text{E}=(10\text{V})=\sin\omega\text{t}$
  1. $\text{I}=\frac{\text{E}_0}{\text{X}_\text{C}}=\frac{\text{E}_0}{\Big(\frac{1}{\omega\text{C}}\Big)}$
$=\frac{10}{\Big(\frac{1}{10\times10^{-5}}\Big)}=1\times10^{-3}\text{A}$
  1. $\omega=100\text{s}^{-1}$
$\text{I}=\frac{\text{E}_0}{\Big(\frac{1}{\omega\text{C}}\Big)}$
$=\frac{10}{\Big(\frac{1}{100\times10^{-5}}\Big)}=1\times10^{-2}\text{A}=0.01\text{A}$
  1. $\omega=500\text{s}^{-1}$
$\text{I}=\frac{\text{E}_0}{\Big(\frac{1}{\omega\text{C}}\Big)}$
$=\frac{10}{\Big(\frac{1}{500\times10^{-5}}\Big)}=5\times10^{-2}\text{A}=0.05\text{A}$
  1. $\omega=1000\text{s}^{-1}$
$\text{I}=\frac{\text{E}_0}{\Big(\frac{1}{\omega\text{C}}\Big)}$
$=\frac{10}{\Big(\frac{1}{1000\times10^{-5}}\Big)}=1\times10^{-1}\text{A}=0.1\text{A}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Alternating Current→Alternating Current — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

A wave propagates on a string in the positive x-direction at a velocity v. The shape of the string at t = to is given by $\text{g}(\text{x},\text{t}_0)=\text{A}\sin\big(\frac{\text{x}}{\text{a}}\big).$ Write the wave equation for a general time t.
→
A spherical tungsten piece of radius $1.0cm$ is suspended in an evacuated chamber maintained at $300K$. The piece is maintained at $1000K$ by heating it electrically. Find the rate at which the electrical energy must be supplied. The emissivity of tungsten is $0.30$ and the Stefan constant $\sigma$ is $6.0 \times 10^{-8}Wm^{-2}K^{-4}$.
→
A simple pendulum of length I is suspended through the ceiling of an elevator. Find the time period of small oscillations if the elevator,
  1. Is going up with an acceleration $a_0$
  2. Is going down with an acceleration $a_0$.
  3. Is moving with a uniform velocity.
→
An insulated container containing monoatomic gas of molar mass m is moving with a velocity $v_0$. If the container is suddenly stopped, find the change in temperature.
→

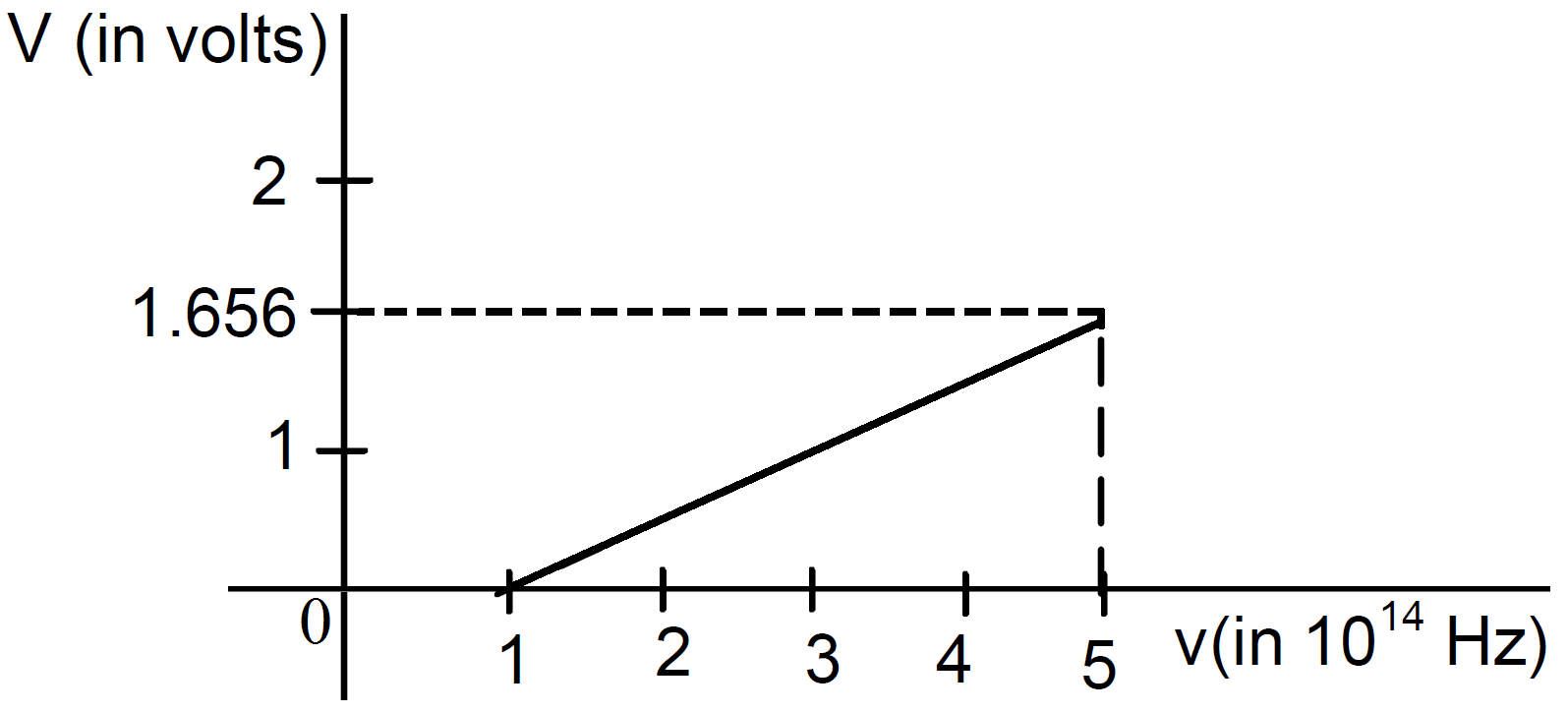

Figure is the plot of the stopping potential versus the frequency of the light used in an experiment on photoelectric effect. Find.
