A capacitor of capacitance $C$ is charged to a potential difference $V$ from a cell and then disconnected from it. A charge $+Q$ is now given to its positive plate. The potential difference across the capacitor is now $Q$
if $V < CV$
Advanced
Download our app for free and get started

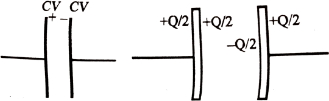

After redistribution half of total charge remains on outer surface and then apply
conservation of charge on each plate.
Charge on outer plates $=\frac{Q+C V-C V}{2}=\frac{Q}{2}$
Charge of innerface of first plate,
$=Q+C V-\frac{Q}{2}=\frac{Q}{2}+C V$
Charge on innerface of second plate $=-\left(\frac{Q}{2}+C V\right)$
$V^{\prime}=\frac{Q / 2+C V}{C}=V+\frac{Q}{2 C}$
