Question

A cell is constructed using $\frac{\text{Cu}^{2+}}{\text{Cu}}$ and $\frac{\text{Al}^{3+}}{\text{Al}}$ electrodes.

Identify cathode and anode.

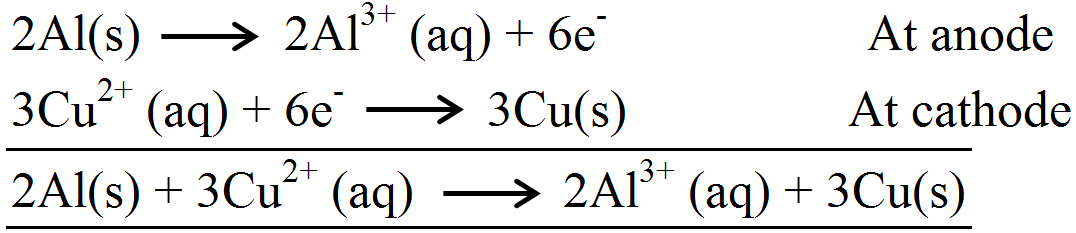

Write the reactions at anode, cathode and net cell reaction.
Calculate $\text{E}^0_\text{cell}$

$\text{E}^0_\frac{\text{Al}^{3+}}{\text{Ag}}=-1.66\text{V}$

$\text{E}^0_\frac{\text{Cu}^{2+}}{\text{Cu}}=+0.34\text{V}$

✓

Answer

It is measured by potentiometer which does not have internal resistance.

'Al' will act as anode, 'Cu' will act as cathode because reduction potential of $\frac{\text{Cu}^{2+}}{\text{Cu}}$ is higher.

$\text{E}^0_\text{cell}=\text{E}^0_\frac{\text{cu}^{2+}}{\text{Cu}}-\text{E}^0_\frac{\text{Al}^{3+}}{\text{Al}}$

$=+0.34\text{V}-(-1.66\text{V})$

$=2.00\text{V}$
