A current loop in a magnetic field
AIPMT 2013, Easy
Download our app for free and get started
When a current loop is placed in a magnetic field it experiences a torque. It is given by
$\vec{\tau}=\vec{M} \times \vec{B}$
$\vec{\tau}=\vec{M} \times \vec{B}$
where, $\vec{M}$ is the magnetic moment of the loop and $\vec{B}$ is the magnetic field.
or $\quad \tau=M B \sin \theta$ where $\theta$ is angle between $M$ and $B$ When $\vec{M}$ and $\vec{B}$ are parallel (i.e. $\theta=0^{\circ}$ ) the equilibrium is stable and when they are antiparallel (i.e. $\theta=\pi$ ) the equilibrium is unstable.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions

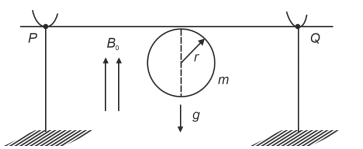

- 1A thin stiff insulated metal wire is bent into a circular loop with its two ends extending tangentially from the same point of the loop. The wire loop has mass $m$ and radius $r$ and it is in a uniform vertical magnetic field $B_0$, as shown in the figure. Initially, it hangs vertically downwards, because of acceleration due to gravity $g$, on two conducting supports at $P$ and $Q$. When a current $/$ is passed through the loop, the loop turns about the line $P Q$ by an angle $\theta$ given byView Solution
