Question
A device called oscillator is used to send waves along a stretched string. The string is $20\ cm$ long, and four complete waves fit along its length when the oscillator vibrates $30$ times per second. For the waves on the string:
  1. What is their wavelength?
  2. What is their frequency?
  3. What is their speed?
✓

Answer

  1. Given that there are four complete waves. So,
$\text{Wavelength}=\frac{\text{Total length of string}}{\text{Number of waves}}$
Therefore,
$\text{Wavelength}=\frac{20}{4}\text{cm}$
$=5\text{cm}$
$=0.05\text{m}$
  1. We have to calculate frequency. We know,
Frequency = (Vibration per second) $\times $ (Number of complete waves formed)
Therefore frequency,
Frequency $= (30) \times (4)Hz$
$= 120Hz$
  1. Now we have to calculate the velocity of the wave.
Given: Frequency $f = 120\ Hz$
Wavelength $\lambda=0.05\text{m}$
We know the relation between velocity, frequency, and wavelength
$\text{v}=\text{f}\times\lambda$
Where,
$ν$ is the velocity,
$f$ the frequency,
$\lambda$ the wavelength.
Therefore,
$ν = (120) \times (0.05)m/s$
$= 6m/s$
Therefore, velocity of the wave is $6\ m/s$.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Que-Ans (Each of 3 Mark )" from Sound→Sound — all question types→Science STD 9 question papers→Gujarat Board STD 9 question papers→Gujarat Board question paper generator→

Similar questions

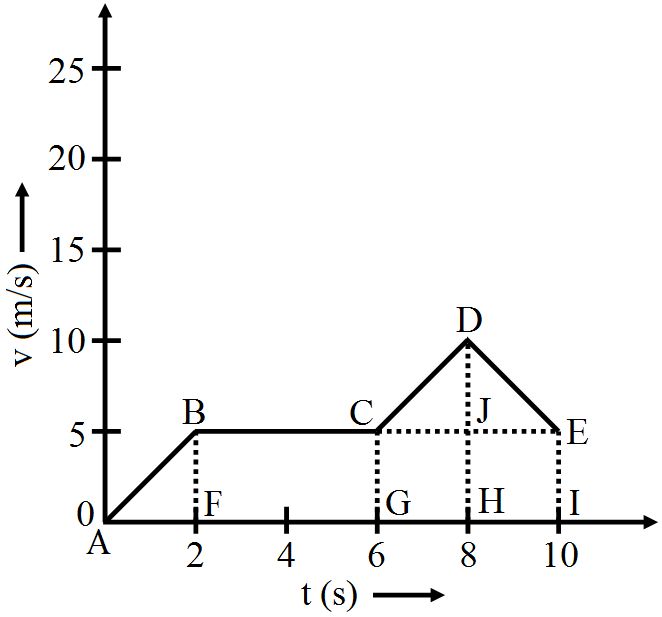

Find the total displacement of the body from the following graph:


→
Which separation techniques will you apply for the separation of the following?
  1. The different pigments from an extract of flower petals.
  2. Butter from curd.
  3. Oil from water.
  4. Tea leaves from tea.
  5. Iron pins from sand.
  6. Wheat grains from husk.
  7. Fine mud particles floating in water.
→
Explain why, we can easily move our hand in air but to do the same through a plank of wood, we need a karate expert.
→
What would happen when eukaryotic cells are placed in hypotonic, hypertonic and isotonic solutions?
→
Explain why, it is dangerous to jump out of a moving bus.
→
State the law of conservation of momentum.
→
What all treatments grains are subjected to under prophylactic treatment?
→

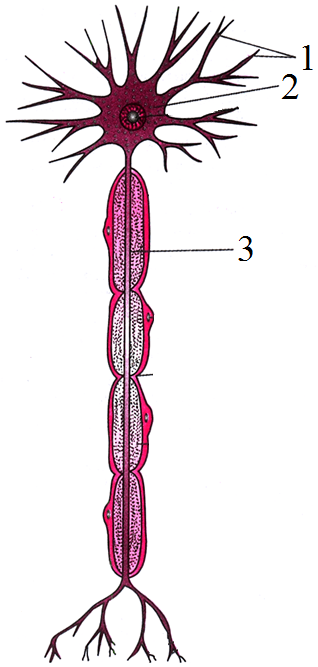

  1. Identify the tissue.
