STD 11 - 13. oscillations — NEET STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 ScienceNEETSTD 11 - 13. oscillations4 Marks
MCQ
A flat horizontal board moves up and down under $S.H.M.$ vertically with amplitude $A$. The shortest permissible time period of the vibration such that an object placed on the board may not lose contact with the board is ..........
  • A
    $2 \pi \sqrt{\frac{g}{A}}$
  • ✓
    $2 \pi \sqrt{\frac{A}{g}}$
  • C
    $2 \pi \sqrt{\frac{2 A}{g}}$
  • D
    $\frac{\pi}{2} \sqrt{\frac{A}{g}}$
✓

Answer

Correct option: B.
$2 \pi \sqrt{\frac{A}{g}}$
b
(b)

Maximum acceleration of the system $\left(a_{\max }\right)=-\omega^2 A$

For a block to escape the board the acceleration must be equal to 9 at the top-most point.

$g=\omega^2 A$

$\omega=\sqrt{\frac{g}{A}}$

Time period $=\frac{2 \pi}{\omega}=\sqrt{\frac{A}{g}}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

NEET STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

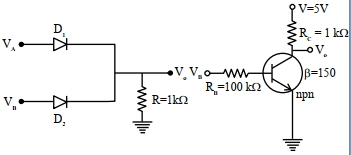

If ${V}_{{A}}$ and ${V}_{{B}}$ are the input voltages (either $5\, {V}$ or $0\, {V}$ ) and ${V}_{0}$ is the output voltage then the two gates represented in the following circuit $(A)$ and $(B)$ are:-
