Question
A Galilean telescope is 27cm long when focused to form an image at infinity. If the objective has a focal length of 30cm, what is the focal length of the eyepiece?
✓
Answer
For the given Galilean telescope, (When the image is formed at infinity)
f0 = 30cm, L = 27cm
Since L = f0 - |fe|
[Since, concave eyepiece lens is used in Galilean Telescope]
⇒ fe = f0 - L = 30 - 27 = 3cm
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Light of wavelength 560nm goes through a pinhole of diameter 0.20mm and falls on a wall at a distance of 2.00m. What will be the radius of the central bright spot formed on the wall?
Write a short note on Gamma rays.
Represent graphically the variation of electric field with distance, for a uniformly charged plane sheet.
Explain the reflection of a plane wave using Huygen's principle.
The decay constant of $\text{ }^{197}_{80}\text{Hg}$ (electron capture to $\text{ }^{197}_{79}\text{Au}$) is 1.8 × 10-4 S-1.
→- What is the half-life?
- What is the average-life?
- How much time will it take to convert 25% of this isotope of mercury into gold?
Find the maximum wavelength of electromagnetic radiation which can create a hole-electron pair in germanium. The band gap in germanium is 0.65eV.
A Young's double slit apparatus has slits separated by 0.28mm and a screen 48cm away from the slits. The whole apparatus is immersed in water and the slits are illuminated by the red light ($\lambda=700\text{nm}$ in vacuum). Find the fringe-width of the pattern formed on the screen.
→Why is the luminous efficiency small for a filament bulb as compared to a mercury vapour lamp?
Write the history of magnet in brief.

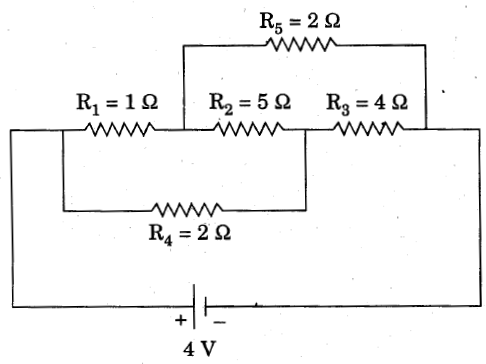

Calculate the current drawn from the battery in the given network.
