Question
A parallel-plate capacitor having plate area $25cm^2$ and separation 1.00mm is connected to a battery of 6.0V. Calculate the charge flown through the battery. How much work has been done by the battery during the process?
✓
Answer
$\text{A}=25\text{cm}^2=2.5\times10^{-3}\text{cm}^2$
$\text{d}=1\text{mm}=0.01\text{m}$
$\text{V}=\text{6V},\ \text{Q}=1$
$\text{C}=\frac{\in_0\text{A}}{\text{d}}=\frac{8.854\times10^{-12}\times2.5\times10^{-3}}{0.01}$
$\text{Q}=\text{CV}=\frac{8.854\times10^{-12}\times2.5\times10^{-3}}{0.01}\times6$
$=1.32810\times10^{-10}\text{C}$
$\text{W}=\text{Q}\times\text{V}=1.32810\times10^{-10}\text{C}\times6$
$=8\times10^{-10}\text{J}.$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions

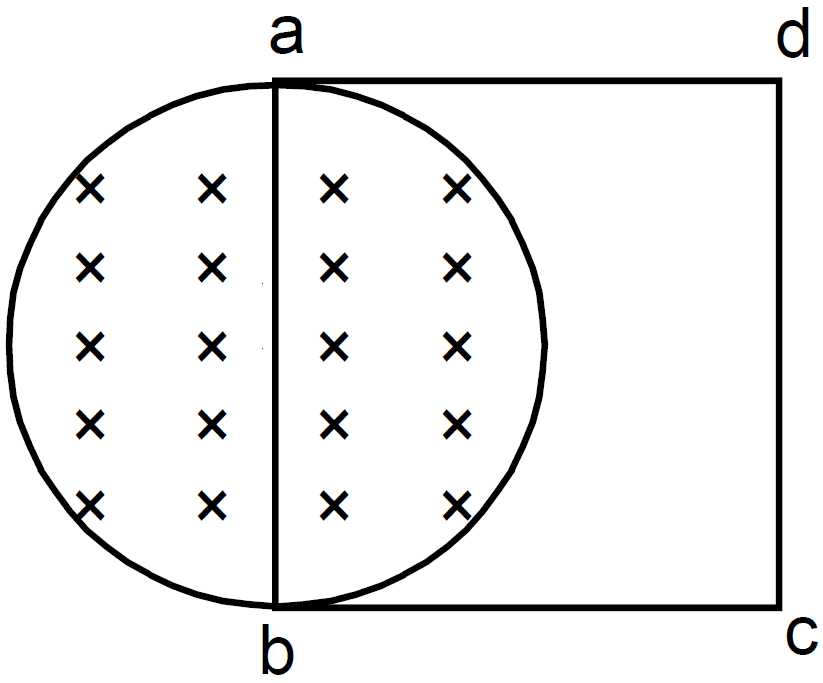

A uniform magnetic field B exists in a cylindrical region of radius 10cm as shown in figure. A uniform wire of length 80cm and resistance $4.0\Omega$ is bent into a square frame and is placed with one side along a diameter of the cylindrical region. If the magnetic field increases at a constant rate of 0.010T/s, find the current induced in the frame.
→Write the main points of efficiency of Carnot engine.
Repeat the previous exercise if the angle between each pair of springs is 120° initially.

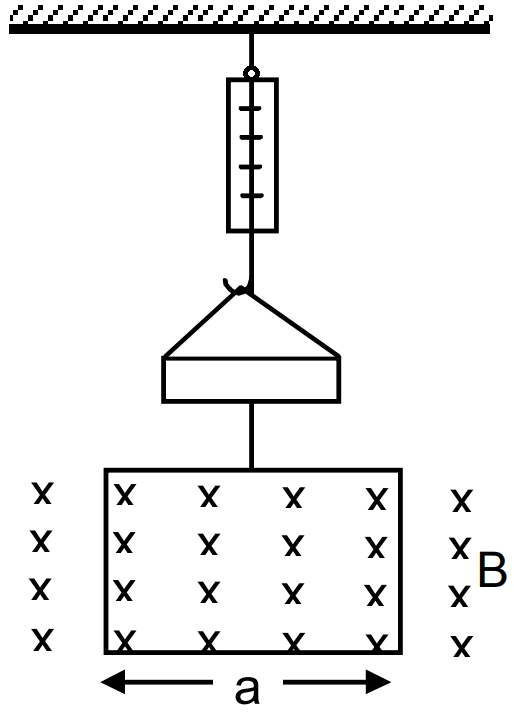

A rectangular wire loop of width a is suspended from the insulated pan of a spring balance, as shown in A current i exists in the anti-clockwise direction in the loop. A magnetic field Bexists in the lower region. Find the change in the tension of the spring if the current in the loop is reversed.
A diver having a moment of inertia of $6.0kg-m^2$ about an axis through its centre of mass rotates at an angular speed of $2rad/s$ about this axis. If he folds his hands and feet to decrease the moment of inertia to $5.0kg-m^2$, what will be the new angular speed?
→A cylindrical piece of cork of density of base area A and height h floats in a liquid of density $\rho_{\text{l}}.$ The cork is depressed slightly and then released. Show that the cork oscillates up and down simple harmonically with a period.$\text{T}=2\pi\sqrt{\frac{\text{h}\rho}{\rho_{\text{l}}\text{g}}}$
where $\rho$ is the density of cork. (Ignore damping due to viscosity of the liquid).
→where $\rho$ is the density of cork. (Ignore damping due to viscosity of the liquid).
Two soap bubbles have radii 2 cm and 3 cm respectively. What would be the radius of curvature of the surface formed at the contact surface when the two bubbles are brought near each other?
Name the three basic perceptions that made science Physics to progress.
- Describe a Carnot's cycle.

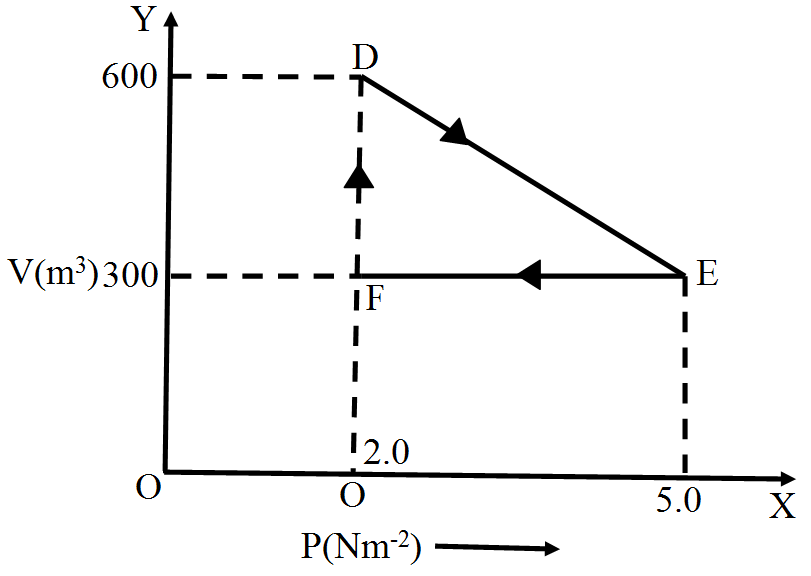

- A thermodynamic system is taken from an original state to an intermediate state by the linear process shown in below figure. Its volume is then reduced to the original value from $E$ to $F$ by an isobaric process. Calculate the work done by the gas from $D$ to $E$ to $F$.
A dumb-bell consists of two identical small balls of mass $\frac{1}{2}\text{kg}$ each connected to the two ends of a 50cm long light rod. The dumb-bell is rotating about a fixed axis through the centre of the rod and perpendicular to it at an angular speed of 10rad/s. An impulsive force of average magnitude 5.0N acts on one of the masses in the direction of its velocity for 0.10s. Find the new angular velocity of the system.
→
