Question

A parallel plate capacitor is charged to a potential difference V from a direct current source, while there is air between the plates. Without separating the capacitor from the battery, a dielectric medium of dielectric constant K has been filled in place of air. Explain with reasons which of the following changes will occur? Also give explanation of the answers.(i) Potential difference (ii) Electric field between the plates (iii) Capacitance (iv) charge (v) energy.

✓

Answer

(i) Since here the capacitor is connected to the battery, i.e. the electric potential difference V will remain unchanged.
(ii) Since both the potential difference and the distance between the plates are unchanged, the electric field $E=\frac{V}{D}$ will remain unchanged.
(iii) Capacitance will increase $\because C = KC _0$
(iv) Since V is constant and the capacitance becomes K times, the charge Q will also become K times.
(v) Initial energy $U_0=\frac{1}{2} C_0\left(V_0\right)^2$ and final energy $U =\frac{1}{2} K C _0\left(V_0\right)^2= K U _0$ i.e.,energy will also increase K times.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Electrostatic Potential and Capacitance→Electrostatic Potential and Capacitance — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

A light ray falling at an angle of $45^\circ$ with the surface of a clean slab of ice of thickness $1m$ is refracted into it at an angle of $30^\circ$ . Calculate the time taken by the light rays, to cross the slab. Speed of light in vacuum $= 3 \times 10^8\ m/s$

A monkey is climbing on a rope that goes over a smooth light pulley and supports a block of equal mass at the other end figure. Show that whatever force the monkey exerts on the rope, the monkey and the blockmove in the same direction with equal acceleration. If initially both were at rest, their separation will not change as time passes.

If three helium nuclei combine to form a carbon nucleus, energy is liberated. Why can't helium nuclei combine on their own and minimise the energy?

Figure shows two blocks of masses m and M connected by a string passing over a pulley. The horizontal table over which the mass m slides is smooth. The pulley has a radius r and moment of inertia I about its axis and it can freely rotate about this axis. Find the acceleration of the mass M assuming that the string does not slip on the pulley.

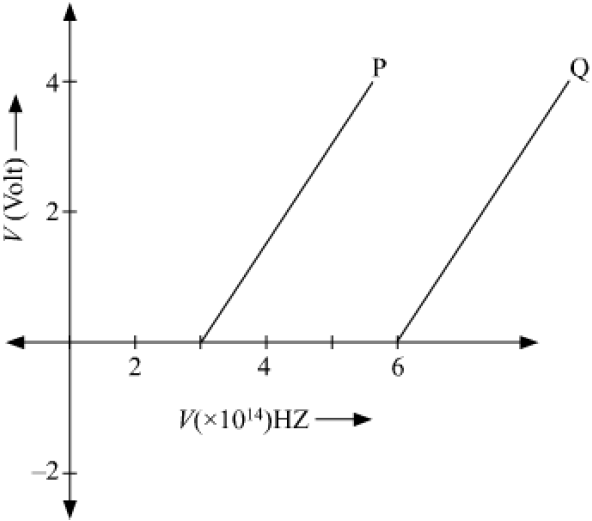

In the study of a photoelectric effect the graph between the stopping potential $V$ and frequency $v$ of the incident radiation on two different metals $P$ and $Q$ is shown below
