Question
A particle of mass $0.1kg$ is held between two rigid supports by two springs of force constants $8N/ m$ and $2N/ m$. If the particle is displaced along the direction of the length of the springs, calculate its frequency of vibration.
✓
Answer

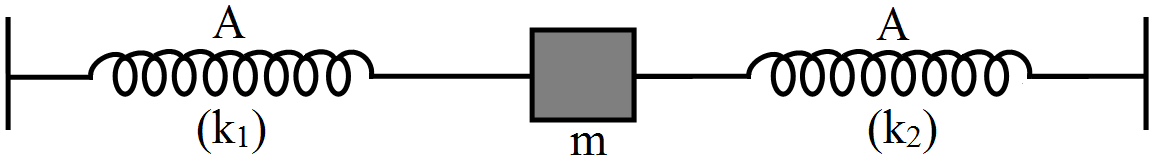

The situation is shown in the fig.
When the mass is displaced along the direction of the length of the spring, one spring is compressed while the other is extended but the force due to both the springs is in the same direction. Hence the effective force constant $k = k_1 + k_2 = 8N/ m + 2N/ m = 10N/ m$ The frequency of vibration is given by$\text{v}=\frac{1}{2\pi}\sqrt{\frac{\text{k}}{\text{m}}}$
$=\frac{1}{2\pi}\sqrt{\frac{10}{0.1}}$
$\text{v}=\frac{10}{2\pi}$
$=\frac{5}{\pi}\text{s}^{-1}$
When the mass is displaced along the direction of the length of the spring, one spring is compressed while the other is extended but the force due to both the springs is in the same direction. Hence the effective force constant $k = k_1 + k_2 = 8N/ m + 2N/ m = 10N/ m$ The frequency of vibration is given by$\text{v}=\frac{1}{2\pi}\sqrt{\frac{\text{k}}{\text{m}}}$
$=\frac{1}{2\pi}\sqrt{\frac{10}{0.1}}$
$\text{v}=\frac{10}{2\pi}$
$=\frac{5}{\pi}\text{s}^{-1}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A calorie is a unit of heat (energy in transit) and it equals about $4.2 J$ where $1J = 1kg m^2 s^{–2}$. Suppose we employ a system of units in which the unit of mass equals $\alpha\text{ kg},$ the unit of length equals $\beta\text{ m},$ the unit of time is $\gamma\text{ s}.$ Show that a calorie has a magnitude $4.2\ \alpha^{-1}\ \beta^{-2}\ \gamma^2$ in terms of the new units.

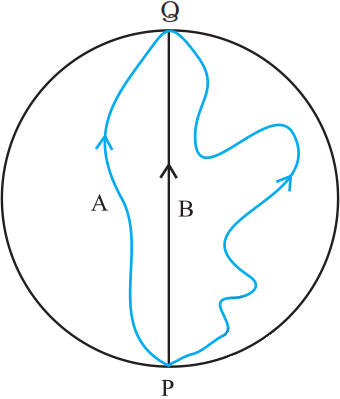

→Three girls skating on a circular ice ground of radius 200m start from a point P on the edge of the ground and reach a point Q diametrically opposite to P following different paths as shown in Fig. What is the magnitude of the displacement vector for each? For which girl is this equal to the actual length of path skate?
