A particle of specific charge (q/m) is projected from the origin of coordinates with initial velocity [ui - vj]. Uniform electric magnetic fields exist in

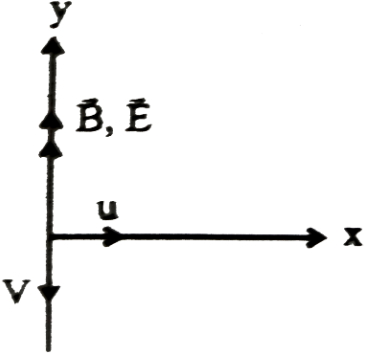

Q: A particle of specific charge $(q/m)$ is projected from the origin of coordinates with initial velocity $[ui - vj]$. Uniform electric magnetic fields exist in the region along the $+y$ direction, of magnitude $E$ and $B.$ The particle will definitely return to the origin once if

c Taking motion along $y$ axis (con by electric field) $\alpha=y_{0}+u_{y} t+\frac{1}{2} q_{y} t^{2}$ $0=0-v t+\frac{1}{2} \frac{q E}{m} t^{2}$ $t=\frac{2 m v}{q E}$ In this time charge must complex one oe more revolution in $\mathrm{x}$$-$ $\mathrm{z}$ plane due to magnetic field $T=\frac{2 \pi m}{q B}=-2 \Rightarrow t=n t \ldots(2)$ $\frac{2 m v}{q E}=n \times \frac{2 \pi m}{q B} \Rightarrow \frac{v B}{\pi E}$

SECTION - A [PHYSICS - MCQ]

GSEB - English Medium

A particle of specific charge $(q/m)$ is projected from the origin of coordinates with initial velocity $[ui - vj]$. Uniform electric magnetic fields exist in the region along the $+y$ direction, of magnitude $E$ and $B.$ The particle will definitely return to the origin once if

A$[vB /2\pi E]$ is an integer
B$(u^2 + v^2)^{1/2} [B / \pi E]$ is an integer
C$[vB / \pi E]$ in an integer
D$[uB/ \pi E]$ is an integer

Advanced

STD 11 Science
NEET
STD 12 - 4. Moving charges and magnetism
Physics
