Question
A plane electromagnetic wave in a non-magnetic dielectric medium is given by $\vec E\, = \,{\vec E_0}\,(4 \times {10^{ - 7}}\,x - 50t)$ with distance being in meter and time in seconds. The dielectric constant of the medium is
✓
Answer
Given equation of wave
$\vec{E}=\vec{E}_{0}(4 \times \overrightarrow{10} x-50 t)$
Comparing with general equation of wave,
$\vec{E}=\vec{E}_{0}(k x-w t)$
we get,
$w=50$ rad $/ s . k=4 \times 10^{-7} m^{-1}$
Thus velocity of wave,
$v=\frac{w}{k}=\frac{50}{4 \times 10^{-7}}=1.25 \times 10^{8} \mathrm{m} / \mathrm{s}$
so, refractive index of medium,
$\mu=\frac{e}{v}=\frac{3 \times 10^{8}}{1.25 \times 10^{8}}=2.4$
using, $u^{2}=k m . k e[\mathrm{km}$ and ke are magnetic and dielectric di - constants]
as medium is non diamagnetic, $k m=1$
$\Rightarrow k e=\mu^{2}=(2.4)^{2} \Rightarrow k e=5.76$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A thin glass plate of thickness is $\frac{{2500}}{3}\,\lambda $ ($\lambda $ is wavelength of light used) and refractive index $\mu = 1.5$ is inserted between one of the slits and the screen in Young's double slit experiment. At a point on the screen equidistant from the slits, the ratio of the intensities before and after the introduction of the glass plate is

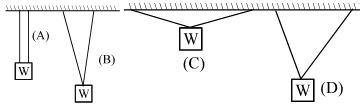

→A weight can be hung in any of the following four ways by string of same type. In which case is the string most likely to break?
