Question
A rectangular lawn, 75m by 60m, has two roads, each road 4m wide, running through the middle of the lawn, one parallel to length and the other parallel to breadth, as shown in the figure. Find the cost of gravelling the rosds at ₹ 50 per m2.

✓

Answer

For road ABCD, i.e. for rectangle ABCD,
Length = 75m
Breadth = 4m
Area of road ABCD = Length × Breadth = 75m × 4m = 300 m2
For road PQRS, i.e. for rectangle PQRS,
Length = 60m
Breadth = 4m
Area of road PQRS = Length × Breadth = 60m × 4m = 240m2
For road EFGH, i.e. for square EFGH,
Side = 4m
Area of road EFGH = (Side)2 = (4)2 = 16m2
Total area of road for gravelling
= Area of road ABCD + Area of road PQRS - Area of road EFGH
= 300 + 240 - 16
= 524m2
Cost of gravelling the road = ₹ 50 per m2
$\therefore$ Cost of gravelling 524m2 road = ₹ (50 × 524) = ₹ 26,200

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Areas of Triangles and Quadrilaterals→Areas of Triangles and Quadrilaterals — all question types→Maths STD 9 question papers→Gujarat Board STD 9 question papers→Gujarat Board question paper generator→

Similar questions

The table given below shows the ages of 75 teachers in a school.
Age (in years)
18 - 29
30 - 39
40 - 49
50 - 59
Number of teachers
3
27
37
8
A teacher from this school is chosen at random. What is the probability that the selected teacher is:
  1. 40 or more than 40 years old?
  2. Of an age lying between 30 - 39 years (including both)?
  3. 18 years or more and 49 years or less?
  4. 18 years or more old?
  5. Above 60 years of age?
Note: Here 18 - 29 means 18 or more but less than or equal to 29.
→

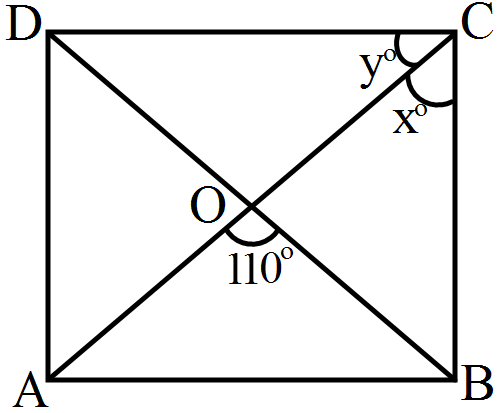

In each of the figures given below, ABD is a rectangle. Find the values of x and y in each case.

→
The perimeter of an isoscale triangle is 42cm and its base is $1\frac{1}{2}$ times each of the equal sides. Find:
  1. The length of each side of the triangle
  2. The area of the triangle
  3. The height of the triangle.
$\big(\text{Given}\sqrt{7}=2.64\big)$
→
In the adjoining figure, $\triangle\text{ABC}$ is a triangle and through A, B, C, lines are drawn, parallel respectively to BC, CA and AB, intersecting at P, Q and R. Prove that the perimeter of $\triangle\text{PQR}$ is double the perimeter of $\triangle\text{ABC}.$

→
In the given figure, O is the centre of the circle and $\angle\text{DAB}=50^\circ.$Calculate the values of x and y.

→
An umbrella is made by stitching 12 triangular pieces of cloth, each measuring (50cm × 20cm × 50cm). Find the area of the cloth used in it.

→

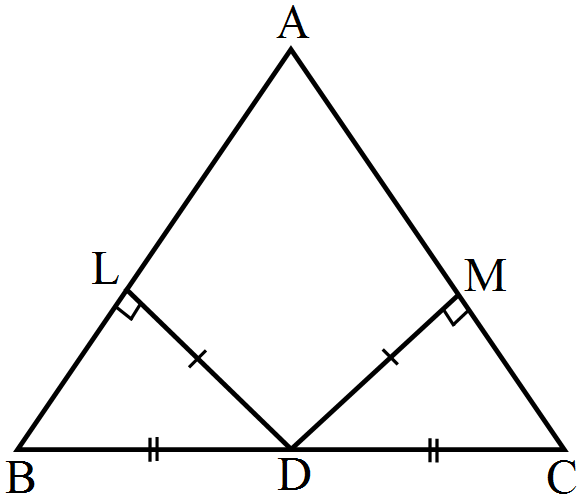

In $\triangle\text{ABC,D}$ is the midpoint of BC. If $\text{DL}\perp\text{AB}$ and $\text{DM}\perp\text{AC}$ such that DL = DM, prove that AB = AC.

→

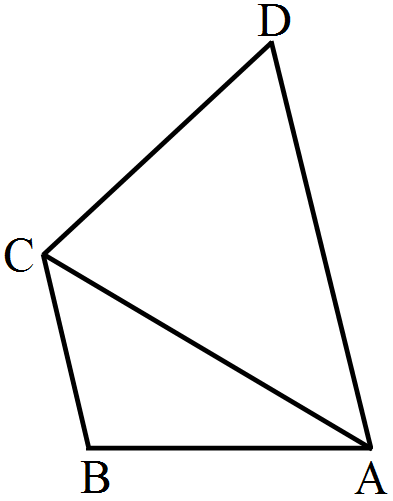

In the given figure, prove that
