A rectangular loop with a sliding connector of length $l = 1.0 \,m$ is situated in a uniform magnetic field $B = 2\,T$ perpendicular to the plane of loop. Resistance of connector is $r = 2$ $\Omega$ Two resistance of $6$ $\Omega$ and $3$ $\Omega$ are connected as shown in figure. The external force required to keep the connector moving with a constant velocity $v = 2\,m/s$ is........$N$

A
$6$
B
$4 $
✓
$2$
D
$1$

✓

Answer

Correct option: C.

$2$

c
(c) Motional emf $e = Bvl \Rightarrow e = 2 \times 2 \times 1 = 4\;V$
This acts as a cell of emf $E = 4\;V$and internal resistance $r = 2\Omega $.

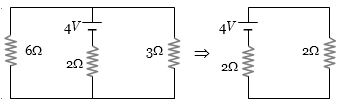

This simple circuit can be drawn as follows

Current through the connector $i = \frac{4}{{2 + 2}} = 1\;A$
magnetic force on connector${F_m} = Bil = 2 \times 1 \times 1 = 2\;N$
(Towards left)

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

NEET STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

A bird weighs $2 kg$ and is inside a closed cage of $1 kg$. If it starts flying, then what is the weight of the bird and cage assembly ........... $kg$

The magnetic moment has dimensions of

$A, \,B$ and $C$ are voltmeters of resistance $R, \,1 .5R$ and $3R$ respectively as shown in the figure. When some potential difference is applied between $X$ and $Y,$ the voltmeter readings are $V_A, \,V_B$ and $V_C$ respectively. Then

A part of a complete circuit is shown in the figure. At some instant, the value of current $I$ is $1\, A$ and it is decreasing at a rate of $10^{2}\, A s ^{-1}$ The value of the potential difference $V _{ P }- V _{ Q }$ (in volts) at that instant, is.

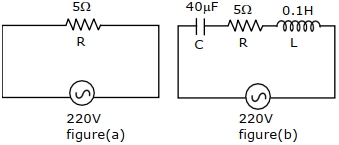

Two circuit are shown in the figure $(a)$ and $(b).$ At a frequency of $....\,rad/s$ the average power dissipated in one cycle will be same in both the circuits.
