Question
A rectangular plate of sides a and b is suspended from a ceiling by two parallel strings of length L each figure The separation between the strings is d. The plate is displaced slightly in its plane keeping the strings tight. Show that it will execute simple harmonic motion. Find the time period.

✓

Answer

Here we have to consider oscillation of centre of mass,

Driving force $\text{F}=\text{mg}\sin\theta.$

Acceleration $=\text{a}=\frac{\text{F}}{\text{m}}=\text{g}\sin\theta.$

For small angle $\theta,\ \sin\theta=\theta.$

$\therefore\text{a}=\text{g}\theta=\text{g}\Big(\frac{\text{X}}{\text{L}}\Big)$[where g and L are constant]

$\therefore\text{a}\propto\text{x},$

So the motion is simple Harmonic

Time period $\text{T}=2\pi\sqrt{\frac{\text{Displacement}}{\text{Acceleration}}}$

$=2\pi\sqrt{\frac{\text{x}}{\Big(\frac{\text{gx}}{\text{L}}\Big)}}$

$=2\pi\sqrt{\frac{\text{L}}{\text{g}}}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Simple Harmonic Motion→Simple Harmonic Motion — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

Red light however bright it is, cannot produce the emission of electrons from a clean zinc surface, but even weak ultraviolet radiation can do so; why?
→

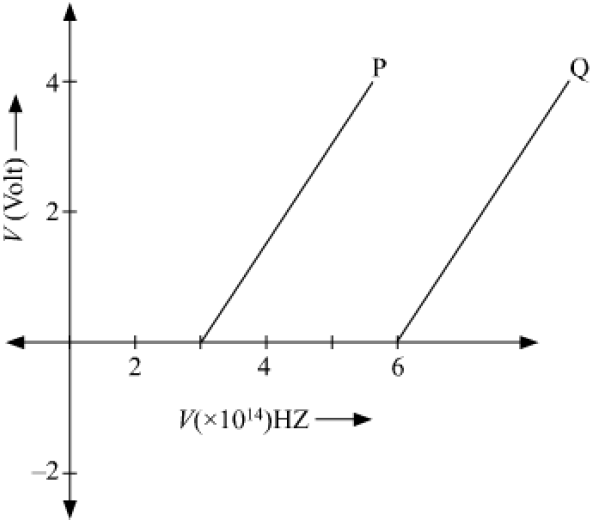

In the study of a photoelectric effect the graph between the stopping potential V and frequency v of the incident radiation on two different metals P and Q is shown below
