A simple harmonic oscillator has an amplitude A and time period 6 pi second. Assuming the oscillation starts from its mean position, the time required

Q: A simple harmonic oscillator has an amplitude $A$ and time period $6 \pi$ second. Assuming the oscillation starts from its mean position, the time required by it to travel from $x=A$ to $x=\frac{\sqrt{3}}{2} A$ will be $\frac{\pi}{x}$ s, where $x=$__________.

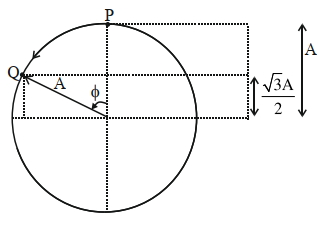

a From phasor diagram particle has to move from $\mathrm{P}$ to $Q$ in a circle of radius equal to amplitude of $SHM.$ $ \cos \phi=\frac{\frac{\sqrt{3} \mathrm{~A}}{2}}{\mathrm{~A}}=\frac{\sqrt{3}}{2} $ $ \phi=\frac{\pi}{6}$ Now, $\frac{\pi}{6}=\omega t$ $\frac{\pi}{6}=\frac{2 \pi}{T} t$ $\frac{\pi}{6}=\frac{2 \pi}{6 \pi} t$ $\mathrm{t}=\frac{\pi}{2}$ So, $\mathrm{x}=2$

SECTION - A [PHYSICS - MCQ]

GSEB - English Medium

A simple harmonic oscillator has an amplitude $A$ and time period $6 \pi$ second. Assuming the oscillation starts from its mean position, the time required by it to travel from $x=A$ to $x=\frac{\sqrt{3}}{2} A$ will be $\frac{\pi}{x}$ s, where $x=$__________.

A$2$
B$12$
C$4$
D$9$

JEE MAIN 2024, Diffcult

STD 11 Science
NEET
STD 11 - 13. oscillations
Physics

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Download App

Similar Questions

1
In forced oscillations, a particle oscillates simple harmonically with a frequency equal to
View Solution
2
Assuming all pulleys, springs and string massless. Consider all surface smooth. Choose the correct statement $(s)$
View Solution
3
The periodic time of a simple pendulum of length $1\, m $ and amplitude $2 \,cm $ is $5\, seconds$. If the amplitude is made $4\, cm$, its periodic time in seconds will be
View Solution
4
In case of a simple pendulum, time period versus length is depicted by
View Solution
5
The potential energy of a particle of mass $0.1\,kg,$ moving along $x-$ axis, is given by $U = 5x(x-4)\,J$ where $x$ is in metres. It can be concluded that
View Solution
6

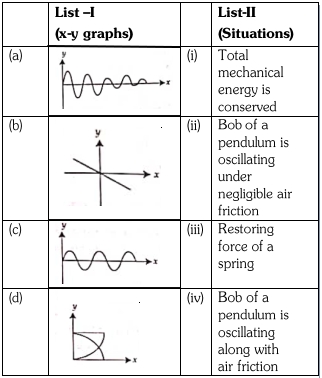

Match $List - I$ with $List - II$
