Question

A steel wire and a copper wire of equal length and equal cross$-$sectional area are joined end to end and the combination is subjected to a tension. Find the ratio of :

The stresses developed in the two wires,
The strains developed in two wires. Given that $Y$ of steel $= 2.0 \times 10^{11}N/ m^2$ and $Y$ of copper $= 1.1 \times 10^{11}N/ m^2$.

✓

Answer

Here $L_1 = L_2, A_1 = A_2$ and $F$ is same.

Stress $\sigma=\frac{\text{F}}{\text{A}}$ and $F$ and $A$ are common, hence stress in steel wire and in copper wire are equal.
Strain $\varepsilon=\frac{\Delta\text{L}}{\text{L}}=\frac{\text{Stress}}{\text{Y}}$ and stress is equal,

$\therefore\frac{\varepsilon_\text{steel}}{\varepsilon_\text{copper}}=\frac{\text{Y}_\text{ copper}}{\text{Y}_\text{steel}}=\frac{1.1\times10^{11}}{2.0\times10^{11}}=\frac{11}{20}=0.55:1.$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Mechanical Properties of Solids→Mechanical Properties of Solids — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

Three uniform spheres each having a mass M and radius a are kept in such a way that each touches the other two. Find the magnitude of the gravitational force on any of the spheres due to the other two.

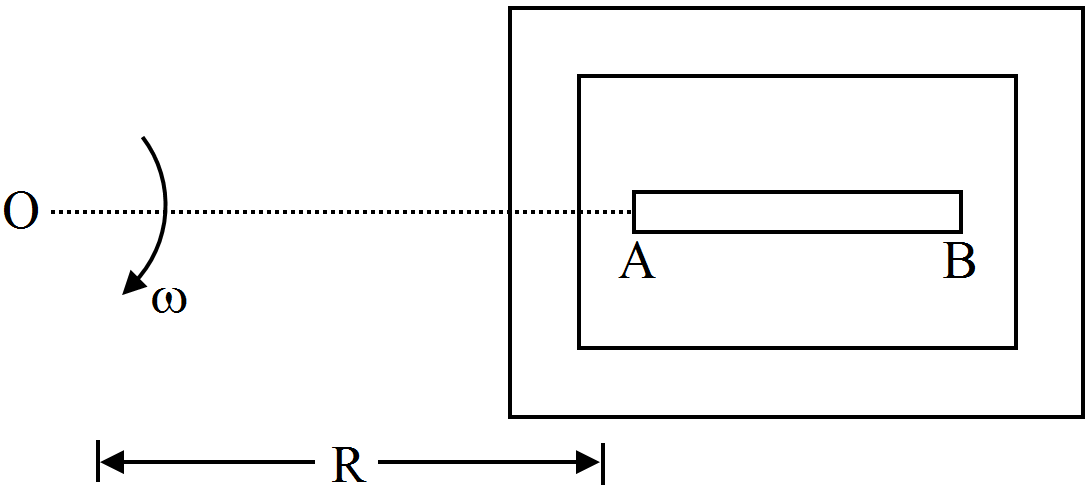

A table with smooth horizontal surface is fixed in a cabin that rotates with angular speed o in a circular path of radius R. A smooth groove AB of length L(< < R) is made on the surface of table as shown in figure.
