MCQ
A string of length $2 m$ is fixed at both ends. If this string vibrates in its fourth normal mode with a frequency of $500 Hz$ then the waves would travel on its with a velocity of ..... $m/s$
- A$125$
- B$250$
- ✓$500$
- D$1000 $
✓
Answer
Correct option: C.
$500$
c
(c) For string $\lambda = \frac{{2l}}{p}$
where $p =$ No. of loops = Order of vibration
Hence for forth mode $p = 4$
(c) For string $\lambda = \frac{{2l}}{p}$
where $p =$ No. of loops = Order of vibration
Hence for forth mode $p = 4$
==> $\lambda = \frac{l}{2}$
Hence $v = n\lambda = 500 \times \frac{2}{2} = 500\,Hz$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
If all matters were made of electrically neutral particles such as neutrons:
Three rods of same material, same area of crosssection but different lengths $10 \,cm , 20 \,cm$ and $30 \,cm$ are connected at a point as shown. What is temperature of junction $O$ is ......... $^{\circ} C$
→There are three sources of sound of equal intensities with frequencies $101, 103$ and $106\, Hz$. What is the beat frequency heard if all are sounded simultaneously ... $Hz$?
→The total mechanical energy of a particle in $SHM$ is
→A body of mass $m$ moves in a circular path with uniform angular velocity. The motion of the body has constant
→$(\Delta\text{Q}-\Delta\text{W})$ is:
→The equation of a sound wave is $y = 0.0015\sin (62.4x + 316\,t)$ The wavelength of this wave is ..... $unit$

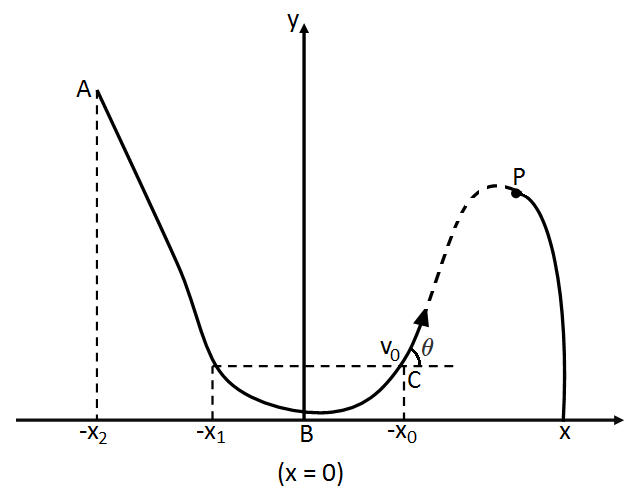

→A particle slides down a frictionless parabolic $\left(y=x^2\right)$ track $(A-B-C)$ starting from rest at point $A$. Point $B$ is at the vertex of parabola and point $C$ is at a height less than that of point $A$. After $C$, the particle moves freely in air as a projectile. If the particle reaches highest point at $P$, then
