Question

A thin paper of thickness $0.02mm$ having a refractive index $1.45$ is pasted across one of the slits in a Young's double slit experiment. The paper transmits $\frac{4}{9}$ of the light energy falling on it.

Find the ratio of the maximum intensity to the minimum intensity in the fringe pattern.
How many fringes will cross through the centre if an identical paper piece is pasted on the other slit also? The wavelength of the light used is 600nm.

✓

Answer

Given that, $t = 0.02mm = 0.02 \times 10^{-3}m$, $\mu_1=1.45,\ \lambda=600\text{nm}=600\times10^{-9}\text{m}$

Let, $I_1$ = Intensity of source without paper = I
Then $I_2$ = Intensity of source with paper $=\Big(\frac{4}{9}\Big)\text{I}$

$\Rightarrow\frac{\text{I}_1}{\text{I}_2}=\frac{9}{4}\Rightarrow\frac{\text{r}_1}{\text{r}_2}=\frac{3}{2}\ [\because\text{I}\propto\text{r}^2]$
where, $r_1$ and $r_2$ are corresponding amplitudes.
So, $\frac{\text{I}_\text{max}}{\text{I}_\text{min}}=\frac{(\text{r}_1+\text{r}_2)^2}{(\text{r}_1-\text{r}_2)^2}=25:1$
No. of fringes that will cross the origin is given by,
$\text{n}=\frac{(\mu-1)\text{t}}{\lambda}=\frac{(1.45-1)\times0.02\times10^{-3}}{600\times10^{-9}}=15.$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Light Waves→Light Waves — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

A composite wire of diameter 1 cm consisting of copper and steel wire of lengths 2.2 m and 2.0 m respectively. Total extension of the wire, when stretched by a force is 1.2 mm . Calculate the force given that Young's modulus for copper is $1.1 \times 10^{11} \mathrm{~Pa}$ and for steel is $2.0 \times 10^{11} \mathrm{~Pa}$.

The time constant of an LR circuit is 40ms. The circuit is connected at t = 10 and the steady-state current is found to be 2.0A. Find the current at:

t = 10ms
t = 20ms
t = 100ms
t = 1s.

The separation between the objective and the eyepiece of a compound microscope can be adjusted between $9.8cm$ to $11.8cm$. If the focal lengths of the objective and the eyepiece are $1.0cm$ and 6cm respectively, find the range of the magnifying power if the image is always needed at $24cm$ from the eye.

Springs of spring constants $k, 2k, 4k, 8k$ ............ are connected in series. A mass m kg is attached to the lower end of the last spring and the system is allowed to vibrate. What is the time period of oscillations? Given $m = 40gm; k = 20Ncm^{-1}$

Two ideal gases have the same value of $\frac{\text{C}_\text{P}}{\text{C}_\text{V}}=\gamma.$ What will be the value of this ratio for a mixture of the two gases in the ratio $1 : 2$?

A compound microscope consists of an objective of focal length $1cm$ and an eyepiece of focal length $5cm$. An object is placed at a distance of $0.5cm$ from the objective. What should be the separation between the lenses so that the microscope projects an inverted real image of the object on a screen $30cm$ behind the eyepiece?

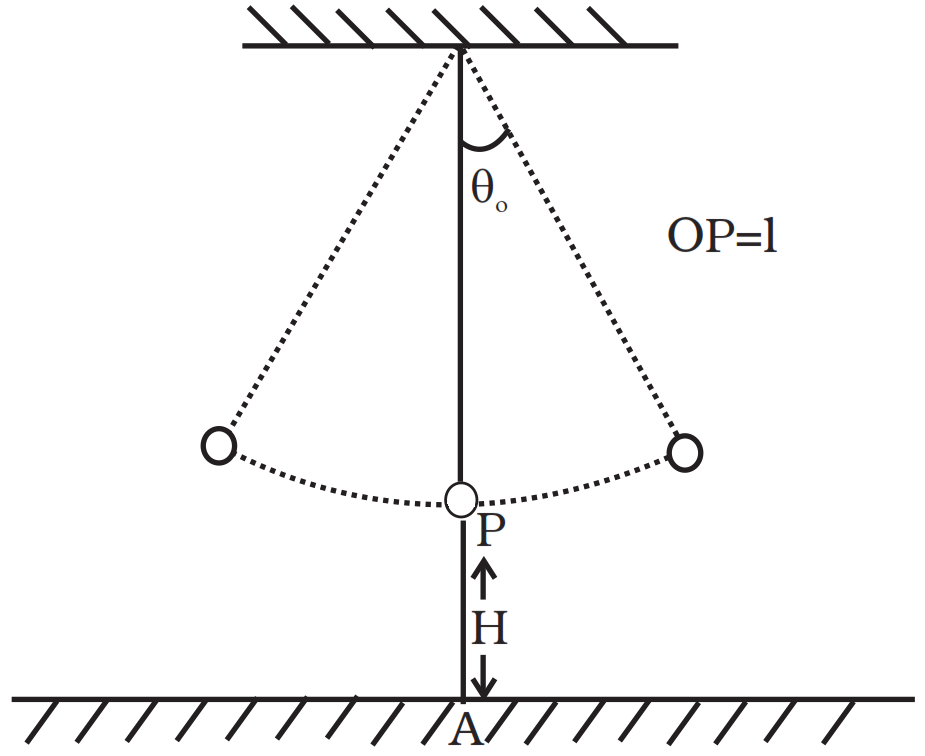

A simple pendulum of time period $1s$ and length l is hung from a fixed support at O, such that the bob is at adistance H vertically above A on the ground The amplitude is $\theta$ The string snaps at $\theta=\frac{\theta_0}{2}$ Find the time taken by the bob to hit the ground. Also find distance from A where bob hits the ground. Assume θ to be small so that $\sin\theta_0\ \text{and}\ \cos\theta_0=1.$

Assuming the earth to be a sphere of uniform mass density, how much would a body weigh half way down to the centre of the earth if it weighed 250N on the surface?

In an experiment to estimate the size of a molecule of oleic acid $1mL$ of oleic acid is dissolved in $19mL$ of alcohol. Then $1mL$ of this solution is diluted to $20mL$ by adding alcohol. Now $1$ drop of this diluted solution is placed on water in a shallow trough. The solution spreads over the surface of water forming one molecule thick layer. Now, lycopodium powder is sprinkled evenly over the film and its diameter is measured. Knowing the volume of the drop and area of the film we can calculate the thickness of the film which will give us the size of oleic acid molecule. Read the passage carefully and answer the following questions:

Why do we dissolve oleic acid in alcohol?
What is the role of lycopodium powder?
What would be the volume of oleic acid in each $mL$ of solution prepared?
How will you calculate the volume of $n$ drops of this solution of oleic acid?
What will be the volume of oleic acid in one drop of this solution?

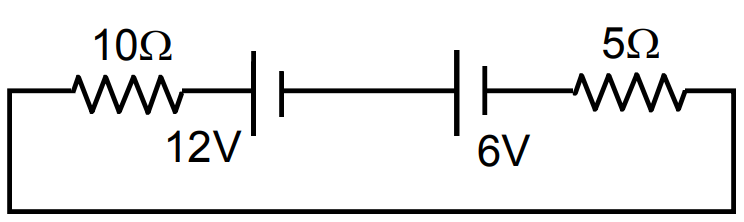

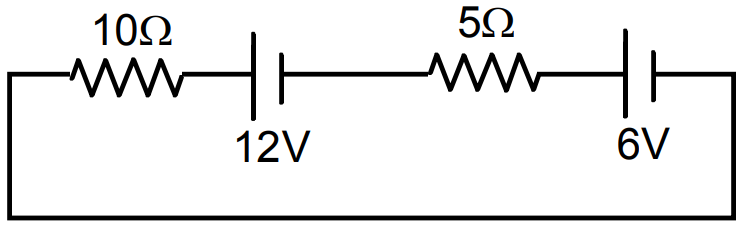

Consider the circuit shown in the figure. Find (a) the current in the circuit (b) the potential drop across the $5\Omega$ resistor (c) the potential drop across the $10\Omega$ resistor. (d) Answer the parts (a), (b) and (c) with reference to the figure.
