Waves — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsWaves5 Marks
Question
A train, standing at the outer signal of a railway station blows a whistle of frequency $400Hz$ in still air.
  1. What is the frequency of the whistle for a platform observer when the train (a) approaches the platform with a speed of $10m s^{–1}$, (b) recedes from the platform with a speed of $10m s^{–1}$?
  2. What is the speed of sound in each case? The speed of sound in still air can be taken as $340m s^{–1}$.
✓

Answer

  1. (a) Frequency of the whistle, ν = 400Hz
Speed of the train, $v_T= 10m/ s$
Speed of sound, $v = 340m/ s$
The apparent frequency (v') of the whistle as the train approaches the platform is given by the
relation:
$\text{v}'=\Big(\frac{\text{v}}{\text{v}-\text{v}_\text{r}}\Big)\text{v}$
$=\Big(\frac{340}{340-10}\Big)\times400=412.12\text{Hz}$
(b) The apparent frequency (v') of the whistle as the train recedes from the platform is given by the relation:
$\text{v}''=\Big(\frac{\text{v}}{\text{v}-\text{v}_\text{r}}\Big)\text{v}$
$=\Big(\frac{340}{340+10}\Big)\times400=388.57\text{Hz}$
  1. The apparent change in the frequency of sound is caused by the relative motions of the source and the observer. These relative motions produce no effect on the speed of sound. Therefore, the speed of sound in air in both the cases remains the same, i.e., 340m/ s.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Waves→Waves — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

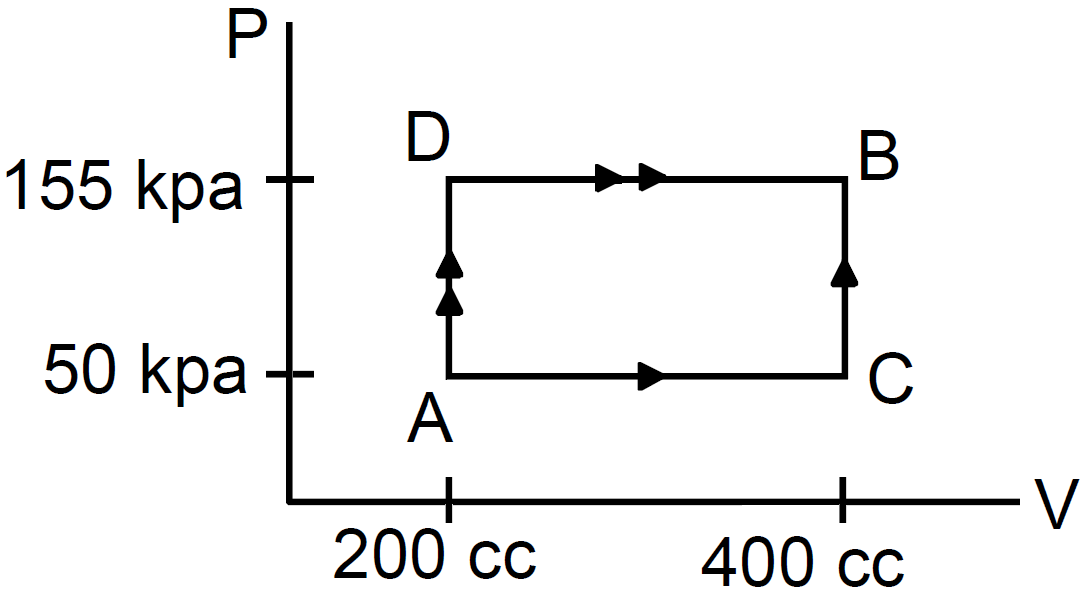

$50cal$ of heat should be supplied to take a system from the state A to the state B through the path ACB as shown in figure. Find the quantity of heat to be supplied to take it from A to B via ADB.
→
