Question
A travelling wave is produced on a long horizontal string by vibrating an end up and down sinusoidally. The amplitude of vibration is 1.0cm and the displacement becomes zero 200 times per second. The linear mass density of the string is 0.10kg/m and it is kept under a tension of 90N.
  1. Find the speed and the wavelength of the wave.
  2. Assume that the wave moves in the positive x-direction and at t = 0, the end x = 0 is at its positive extreme position. Write the wave equation.
  3. Find the velocity and acceleration of the particle at x - 50cm at time t = 10ms.
✓

Answer

Amplitude, $\text{A}=1\text{cm},$ Tension $\text{T}=90\text{N}$

Frequency, $\text{f}=\frac{200}{2}=100\text{Hz}$

Mass per unit length, $\text{m}=0.1\text{kg/mt}$

  1. $\Rightarrow\text{v}=\sqrt{\frac{\text{T}}{\text{m}}}=30\text{m/s}$

$\lambda=\frac{\text{v}}{\text{f}}=\frac{30}{100}=0.3\text{m}=30\text{cm}$

  1. The wave equation $\text{y}=(1\text{cm})\cos2\pi\Big(\frac{\text{t}}{0.01\text{s}}\Big)-\Big(\frac{\text{x}}{30}\text{cm}\Big)$

[because at x = 0, displacement is maximum]

  1. $\text{y}=1\cos2\pi\Big(\frac{\text{x}}{30}-\frac{\text{t}}{0.01}\Big)$

$\Rightarrow\text{v}=\frac{\text{dy}}{\text{dt}}=\Big(\frac{1}{0.01}\Big)\sin2\pi\Big\{\big(\frac{\text{x}}{30}\big)-\big(\frac{\text{t}}{0.01}\big)\Big\}$

$\text{a}=\frac{\text{dv}}{\text{dt}}=-\Big\{\frac{4\pi^2}{(0.01)^2}\Big\}\cos2\pi\Big\{\big(\frac{\text{x}}{30}\big)-\big(\frac{\text{t}}{0.01}\big)\Big\}$

When, $\text{x}=50\text{cm},\ \text{t}=10\text{ms}=10\times10^{-3}\text{s}$

$\text{x}=\Big(\frac{2\pi}{0.01}\Big)\sin2\pi\Big\{\big(\frac{5}{3}\big)-\big(\frac{0.01}{0.01}\big)\Big\}$

$=\Big(\frac{\text{p}}{0.01}\Big)\sin\bigg(\frac{2\pi}{\frac{2}{3}}\bigg)=\Big(\frac{1}{0.01}\Big)\sin\Big(\frac{4\pi}{3}\Big)\\=-200\pi\sin\Big(\frac{\pi}{3}\Big)=-200\pi\text{x}\Big(\frac{\sqrt{3}}{2}\Big)$

$=544\text{cm/s}=5.4\text{m/s}$

Similarly

$\text{a}=\Big\{\frac{4\pi^2}{(0.01)^2}\Big\}\cos2\pi\Big\{\big(\frac{5}{3}\big)-1\Big\}$

$=4\pi^2\times10^4\times\frac{1}{2}$

$\Rightarrow2\times10^5\text{cm/s}^2$

$\Rightarrow2\text{km/s}^2$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Long Answer Type Questions [5M]" from Wave Motion and Waves on a String→Wave Motion and Waves on a String — all question types→Physics STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

(II) (a) With the help of a diagram, explain the principle of a device which changes a low ac voltage into a high voltage . Deduce the expression for the ratio of secondary voltage to the primary voltage in terms of the ratio of the number of turns of primary and secondary winding. For an ideal transformer, obtain the ratio of primary and secondary currents in terms of the ratio of the voltages in the secondary and primary coils.
(b) Write any two sources of the energy losses which occur in actual transformers.
(c) A step-up transformer converts a low input voltage into a high output voltage. Does it violate law of conservation of energy? Explain.
→
Using Huygens' principle, draw a diagram to show propagation of a wavefront originating from a monochromatic point source. Explain briefly.
→
A particle of mass m and charge q is released from the origin in a region in which the electric field and magnetic field are given by
$\overrightarrow{\text{B}}=-\text{B}_0\overrightarrow{\text{j}}$ and $\overrightarrow{\text{E}}=\text{E}_0\overrightarrow{\text{k}}.$ Find the speed of the particle as a function of its z-coordinate.
→
Write the definition of electric flux.Obtain the expression for the electric field intensity at any point due to a uniformly charged straight wire of infinite extension using Gauss'law. Draw the necessary diagram.
→

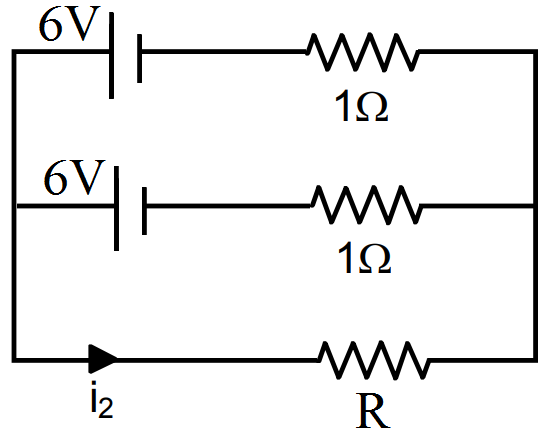

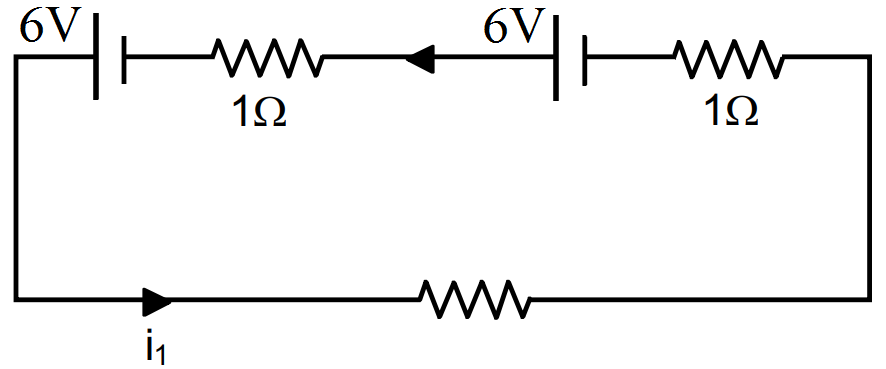

Find the value of $\frac{\text{i}_1}{\text{i}_2}$ in the figure. if (a) $\text{R}=0.1\Omega$ (b) $\text{R}=1\Omega$ and (c) $\text{R}=10\Omega.$ Note from your answers that in order to get more current from a combination of two batteries, they should be joined in parallel if the external resistance is small and in series if the external resistance is large, compared to the internal resistance.

→
