A wire of cross-sectional area $3\,m{m^2}$ is first stretched between two fixed points at a temperature of $20°C$. Determine the tension when the temperature falls to $10°C$. Coefficient of linear expansion $\alpha = {10^{ - 5}}   { ^\circ}{C^{ - 1}}$ and $Y = 2 \times {10^{11}}\,N/{m^2}$  ........ $N$
  • A
    $20 $
  • B
    $30$
  • $60$
  • D
    $120$

Answer

Correct option: C.
$60$
c
(c) $F = YA\alpha \Delta t$$ = 2 \times {10^{11}} \times 3 \times {10^{ - 6}} \times {10^{ - 5}} \times (20 - 10) = 60\,N$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Similar questions

A sine wave is travelling in a medium. A particular particle has zero displacement at a certain instant. The particle closest to it having zero displacement is at a distance:

  1. $\frac{\lambda}{4}$

  2. $\frac{\lambda}{3}$

  3. $\frac{\lambda}{2}$

  4. $\lambda.$

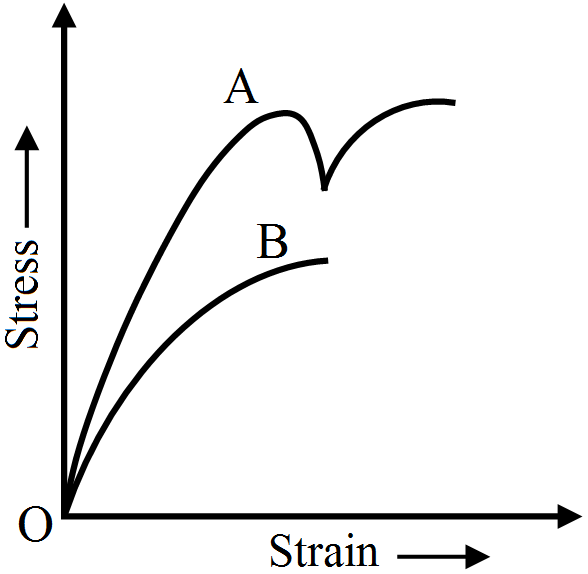

Stress-strain curves for the material A and B are shown below:
