$ABC$ is a triangle with $B$ as right angle, $AC = 5\ cm$ and $AB = 4\ cm$. A circle is drawn with $A$ as centre and $AC$ as radius. The length of the chord of this circle passing through $C$ and $B$ is:

A
$3\ cm.$
B
$4\ cm.$
C
$5\ cm.$
✓
$6\ cm.$

✓

Answer

Correct option: D.

$6\ cm.$

$A D$ and $A C$ are radii of same circle and $C D$ is a chord.
Consider $\triangle \mathrm{ABC}$,
$B C^2=(A C)^2-(A B)^2$
$=5^2-4^2=25-16=9$
$\Rightarrow B C=3 \mathrm{~cm}$
Chord $C D=2 \times B C=6 \mathrm{~cm}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q" from Circles→Circles — all question types→Maths STD 9 question papers→Gujarat Board STD 9 question papers→Gujarat Board question paper generator→

Similar questions

If one angle of a parallelogram is 24$^{\circ}$ less than twice the smallest angle, then the measure of the largest angle of the largest angle of the parallelogram is:

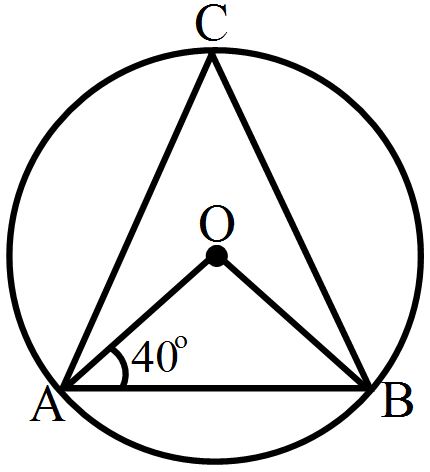

In the given figure, $O$ is the centre of a circle. If $\angle\text{OAB}=40^\circ$ and $C$ is a point on the circle, then $\angle\text{ACB}=?$

If the mode of the data is $45$ and the median is $33,$ then the mean is:

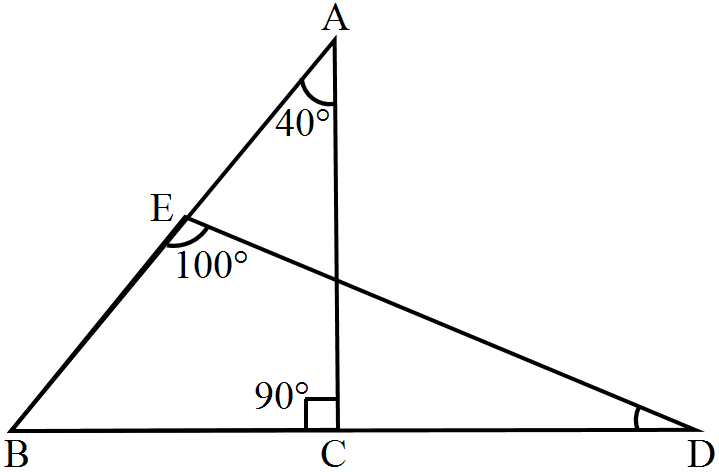

In the given figure, $\angle\text{BAC}=40^\circ,\angle\text{ACB}=90^\circ$ and $\angle\text{BED}=100^\circ,$ Then $\angle\text{BDE}=?$
