Areas Of Parallelograms And Triangles — Maths STD 9 — Question

Gujarat BoardEnglish MediumSTD 9MathsAreas Of Parallelograms And Triangles4 Marks
Question
ABCD is a parallelogram in which BC is produced to E such that CE = BC. AE intersects CD at F.
  1. Prove that $\text{ar}(\triangle\text{ADF})=\text{ar}(\triangle\text{ECF}).$
  2. If the area of $\triangle\text{DFB}=3\text{cm}^2,$ find the area of ||gm ABCD.
✓

Answer

In triangles ADF and ECF, we have
$\angle\text{ADF}=\angle\text{ECF}$ [Alternate interior angles, Since AD || BE]
AD = EC [since AD = BC = CE]
And $\angle\text{DFA}=\angle\text{CFA}$ [Vertically opposite angles]
So, by AAS congruence criterion, we have
$\triangle\text{ADF}\cong\triangle\text{ECF}$
$\Rightarrow\text{ar}(\triangle\text{ADF})=\text{ar}(\triangle\text{ECF})$ and DF = CF.
Now, DF = CF
⇒ BF is a median in $\triangle\text{BCD}.$
$\Rightarrow\text{ar}(\triangle\text{BCD})=2\text{ar}(\triangle\text{BDF})$
$\Rightarrow\text{ar}(\triangle\text{BCD})=2\times3\text{cm}^2=6\text{cm}^2$
Hence, area of a parallelogram $=2\text{ar}(\triangle\text{BCD})=2\times6\text{cm}^2=12\text{cm}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "4 Marks Questions" from Areas Of Parallelograms And Triangles→Areas Of Parallelograms And Triangles — all question types→Maths STD 9 question papers→Gujarat Board STD 9 question papers→Gujarat Board question paper generator→

Similar questions

Without actual division, prove that 2x4 - 5x3 + 2x2 - x + 2 is divisible by x2 - 3x + 2.
[Hint: Factorise x2 - 3x + 2]
→
If $\text{a}=3-2\sqrt{2},$ find the value of $\text{a}^2-\frac{1}{\text{a}^2}.$
→
ABCD is a trapezium in which AB || CD and AD = BC.
Show that :
  1. $\angle$A = $\angle$B
  2. $\angle$C = $\angle$D
  3. $\triangle$ABC $\cong$ $\angle$BAD
  4. diagonal AC = diagonal BD.
→
Draw a line segment AB of length 5.8cm. Draw the perpendicular bisector of this line segment.
→

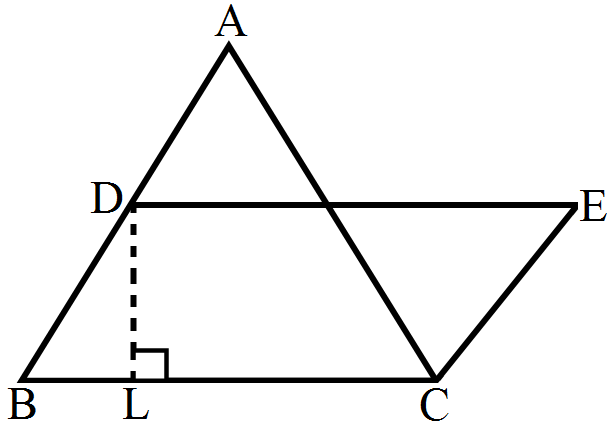

In the given figure, a $\triangle\text{ABC}$ has been given in which AB = 7.5cm, AC = 6.5cm and BC = 7cm. On base BC, a parallelogram DBCE of the same area as that of $\triangle\text{ABC}$ is constructed. Find the height DL of the parallelogram.

→
ABC is a triangle right angled at C. A line through the mid-point M of hypotenuse AB and parallels to BC intersects AC at D.Show that :
  1. D is the mid-point of AC
  2. MD $\perp$ AC
  3. CM = MA = $\frac{1}{2}$AB
→
If the two sides of a pair of opposite sides of a cyclic quadrilateral ae equal, prove that its diagonals are equal.
→
A survey conducted by an organisation for the cause of illness and death among the women between the ages 15-44 (in years) worldwide, found the following figures (in %) :

S.No.

Causes

Female fatality rate (%)

1

Reproductive health conditions

31.8

2

Neuropsychiatric conditions

25.4

3

Injuries

12.4

4

Cardiovascular conditions

4.3

5

Respiratory conditions

4.1

6

Other causes

22.0
  1. Represent the information given above graphically.
  2. Which condition is the major cause of women's ill health and death worldwide?
  3. Try to find out, with the help of your teacher, any two factors which play a major role in the cause in (ii) above being the major cause.
→
The dimensions of a room are 12.5m by 9m by 7m. There are 2 doors and 4 windows in the room; each door measures 2.5m by 1.2m and each window 1.5m by 1m. Find the cost of painting the walls at ₹ 3.50 per square meter.
→
In the adjoining figure, ABCD is a parallelogram in which AB is produced to E so that BE = AB. Prove that ED bisects BC.

→
