Question
An atmospheric pressure is 106 dyne/cm². Find its value in SI unit system.
✓
Answer
Dimension formula of pressure $=\left[ M ^1 L^{-1} T^{-2}\right]$
Here $a=1, b=-1, c=-2$
From the system converting equation :
$
n_2=n_1\left[\frac{M_1}{M_2}\right]^{a}\left[\frac{L_1}{L_2}\right]^{b}\left[\frac{T_1}{T_2}\right]^{c}
$
It is given,
CGS System
$M _1=1 gm$
$L _1=1 cm$
$T _1=1 s$.
MKS System
$M _2=1 kg$
$L _2=1 m$
$T _2=1 s$
$n_1=10^6$ dyne $/ cm ^2 \quad n_2=?$
$\begin{aligned} n_2 & =10^6\left[\frac{1 g}{1 kg}\right]^1\left[\frac{1 cm}{1 m}\right]^{-1}\left[\frac{1 s}{1 s}\right]^{-2} \\ & =10^6\left[\frac{1 g}{10^3 g}\right]^1\left[\frac{1 cm}{10^2 cm}\right]^{-1}\left[\frac{1 s}{1 s}\right]^{-2} \\ & =10^6\left[\frac{1 g}{10^3 g}\right]^1\left[\frac{10^2 cm}{1 cm}\right]^1 \\ & =\frac{10^6 \times 10^2}{10^3}=10^5\end{aligned}$
Hence atmospheric pressure in SI units $=10^5 N / m ^2$.
Here $a=1, b=-1, c=-2$
From the system converting equation :
$
n_2=n_1\left[\frac{M_1}{M_2}\right]^{a}\left[\frac{L_1}{L_2}\right]^{b}\left[\frac{T_1}{T_2}\right]^{c}
$
It is given,
CGS System
$M _1=1 gm$
$L _1=1 cm$
$T _1=1 s$.
MKS System
$M _2=1 kg$
$L _2=1 m$
$T _2=1 s$
$n_1=10^6$ dyne $/ cm ^2 \quad n_2=?$
$\begin{aligned} n_2 & =10^6\left[\frac{1 g}{1 kg}\right]^1\left[\frac{1 cm}{1 m}\right]^{-1}\left[\frac{1 s}{1 s}\right]^{-2} \\ & =10^6\left[\frac{1 g}{10^3 g}\right]^1\left[\frac{1 cm}{10^2 cm}\right]^{-1}\left[\frac{1 s}{1 s}\right]^{-2} \\ & =10^6\left[\frac{1 g}{10^3 g}\right]^1\left[\frac{10^2 cm}{1 cm}\right]^1 \\ & =\frac{10^6 \times 10^2}{10^3}=10^5\end{aligned}$
Hence atmospheric pressure in SI units $=10^5 N / m ^2$.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Three identical metal plates with large surface areas are kept parallel to each other as shown in figure. The leftmost plate is given a charge Q, the rightmost a charge -2Q and the middle one remains neutral. Find the charge appearing on the outer surface of the rightmost plate.
State the first law of thermodynamics. List the sign conventions used in the energy dealt by the law.
A magnetic flux of $8 \times 10^{-4}$ weber is linked with each turn of a 200-turn coil when there is an electric current of 4A in it. Calculate the self-inductance of the coil.
→What are the conditions so that transfer of kinetic energy is maximum during a collision?
Repeat the previous exercise if the angle between each pair of springs is 120° initially.
A rod is inserted as the core in the current$-$carrying solenoid of the previous problem.
→- What is the magnetic intensity $H$ at the centre?
- If the magnetization $I$ of the core is found to be $0.12Nm,$ find the susceptibility of the material of the rod.
- Is the material paramagnetic, diamagnetic or ferromagnetic?
A thin prism of crown glass $(\mu_\text{r}=1.515,\mu_\text{v}=1.525)$ and a thin prism of flint glass $(\mu_\text{r}=1.612,\mu_\text{v}=1.632)$ are placed in contact with each other. Their refracting angles are 5.0° each and are similarly directed. Calculate the angular dispersion produced by the combination.
→A block of wood of mass 3 kg is resting on the surface of a rough inclined surface, inclined at an angle $\theta$ as shown in the figure.
a. Name the forces $(1,2,3)$.
b. If the coefficient of static friction is 0.2 , calculate the value of all three forces.
$
\text { (use } g=10 m / s^2 \text { ) }
$
→a. Name the forces $(1,2,3)$.
b. If the coefficient of static friction is 0.2 , calculate the value of all three forces.
$
\text { (use } g=10 m / s^2 \text { ) }
$

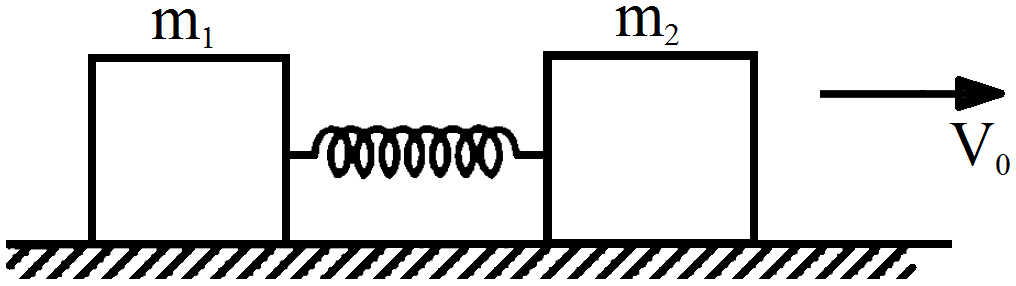

Two blocks of masses $m_1$ and $m_2$ are connected by a spring of spring constant $k.$ The block of mass $m_2$ is given a sharp impulse so that it acquires a velocity $v_0$ towards right. Find
