Electromagnetic Induction — Physics STD 12 Science — Question

Gujarat BoardEnglish MediumSTD 12 SciencePhysicsElectromagnetic Induction1 Mark
MCQ
An e.m.f is produced in a coil, which is not connected to an external voltage source. This can be due to:
  • A
    The coil being in a time varying magnetic field.
  • B
    The coil moving in a time varying magnetic field.
  • C
    The coil moving in a constant magnetic field.
  • ✓
    All of the above.
✓

Answer

Correct option: D.
All of the above.
Solution:
Key concept: As we know whenever the number of magnetic lines of force (magnetic flux) passing through a circuit changes, an e.m.f is produced in the circuit called induced e.m.f. The induced e.m.f persists only as long as there is a change or cutting of flux.

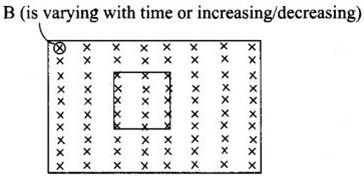

In this problem, magnetic flux linked with the isolated coil changes when the coil is placed in the region of a time varying magnetic field, the coil moving in a constant magnetic field or in time varying magnetic field.
​​​​​​​
