An open pipe is in resonance in its $2^{nd}$ harmonic with tuning fork of frequency ${f_1}$. Now it is closed at one end. If the frequency of the tuning fork is increased slowly from ${f_1}$ then again a resonance is obtained with a frequency ${f_2}$. If in this case the pipe vibrates ${n^{th}}$ harmonics then

A
$n = 3,$ ${f_2} = \frac{3}{4}{f_1}$
B
$n = 3,$ ${f_2} = \frac{5}{4}{f_1}$
✓
$n = 5,$ ${f_2} = \frac{5}{4}{f_1}$
D
$n = 5,$ ${f_2} = \frac{3}{4}{f_1}$

✓

Answer

Correct option: C.

$n = 5,$ ${f_2} = \frac{5}{4}{f_1}$

c
(c) Open pipe resonance frequency ${f_1} = \frac{{2v}}{{2L}}$

Closed pipe resonance frequency ${f_2} = \frac{{nv}}{{4L}}$

${f_2} = \frac{n}{4}{f_1}$ (where n is odd and ${f_2} > {f_1}$)

$\therefore n = 5$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 14. waves and sound→14. waves and sound — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

The bob $A$ of simple pendulum is released when the string makes an angle of $45^o$ with the vertical. It hits another bob $B$ of the same material and same mass kept at rest on the table. If the collision is elastic, then

$A$ section of fixed smooth circular track of radius $R$ in vertical plane is shown in the figure. $A$ block is released from position $A$ and leaves the track at $B$. The radius of curvature of its trajectory when it just leaves the track at $B$ is:

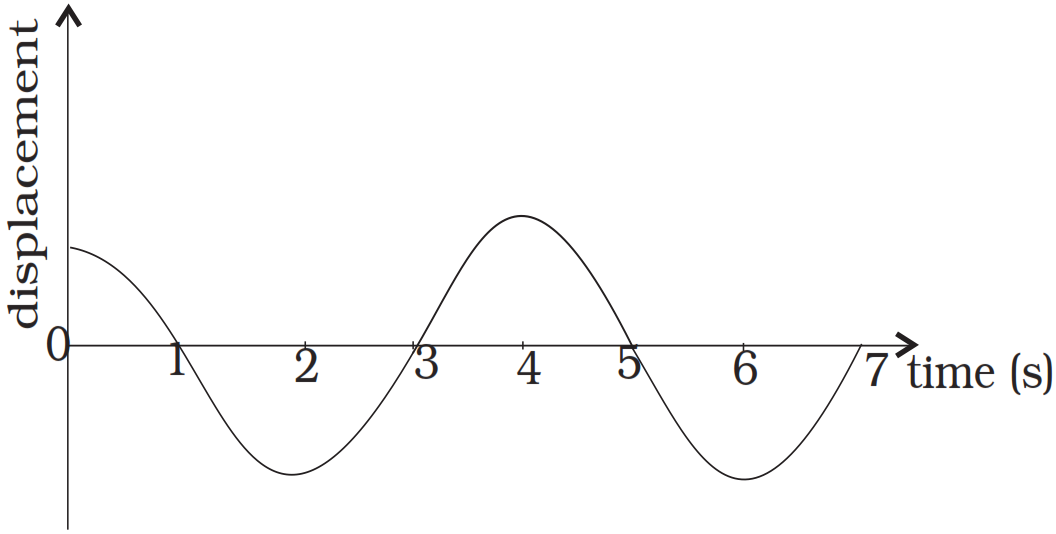

Displacement vs. time curve for a particle executing $\text{S.H.M.}$ is shown in Fig. Choose the correct statements:

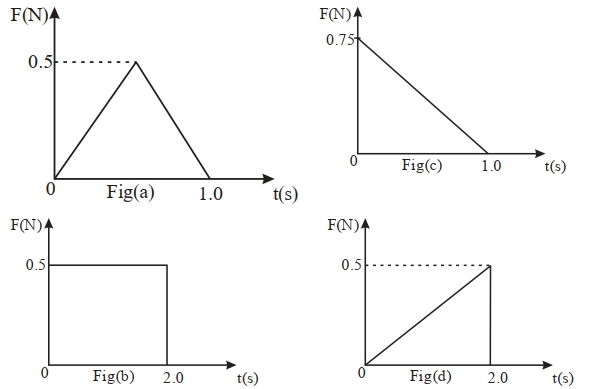

Figures $(a), (b), (c)$ and $(d)$ show variation of force with time.
