14. waves and sound — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysics14. waves and sound1 Mark
MCQ
An organ pipe ${P_1}$ closed at one end vibrating in its first overtone and another pipe ${P_2}$ open at both ends vibrating in its third overtone are in resonance with a given tuning fork. The ratio of lengths of ${P_1}$ and ${P_2}$ is
  • A
    $1:2$
  • B
    $1:3$
  • ✓
    $3:8$
  • D
    $3:4$
✓

Answer

Correct option: C.
$3:8$
c
(c) First overtone of closed organ pipe ${n_1} = \frac{{3v}}{{4{l_1}}}$
Third overtone of open organ pipe ${n_2} = \frac{{4v}}{{2{L_2}}}$
${n_1} = {n_2}$ (Given)

$ \Rightarrow $$\frac{{3v}}{{4{L_1}}} = \frac{{4v}}{{2{L_2}}} \Rightarrow $$\frac{{{L_1}}}{{{L_2}}} = \frac{3}{8}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 14. waves and sound→14. waves and sound — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

The height $y$ and the distance $x$ along the horizontal plane of a projectile on a certain planet (with no surrounding atmosphere) are given by $y = (8t - 5{t^2})$ meter and $x = 6t\, meter$, where $t$ is in second. the angle with the horizontal at which the projectile was projected is
→
A cylindrical metal rod of length $L‌‌_0$ is shaped into a ring with a small gap as shown. On heating the system
→
The coefficient of friction between a body and the surface of an inclined plane at $45^°$ is $0.5.$ If $g = 9.8\,m/{s^2}$, the acceleration of the body downwards in $m/{s^2}$ is
→
A uniform stick of mass $M$ and length $L$ is pivoted at its centre. Its ends are tied to two springs each of force constant $K$ . In the position shown in figure, the strings are in their natural length. When the stick is displaced through a small angle $\theta $ and released. The stick
→
The $P-V$ diagram for an ideal gas in a piston cylinder assembly undergoing a thermodynamic process is shown in the figure. The process is
→
Which one of the following statements does not hold good when two balls of masses $m _1$ and $m _2$ undergo elastic collision
→
If block $A$ has a velocity of $0.6\,m / s$ to the right, determine the velocity of block $B$.
→
Latent heat of ice is:
→

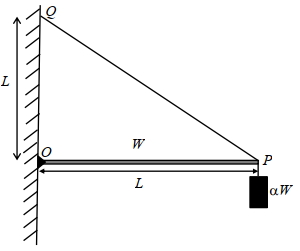

One end of a horizontal uniform beam of weight $W$ and length $L$ is hinged on a vertical wall at point $O$ and its other end is supported by a light inextensible rope. The other end of the rope is fixed at point $Q$, at a height $L$ above the hinge at point $O$. A block of weight $\alpha W$ is attached at the point $P$ of the beam, as shown in the figure (not to scale). The rope can sustain a maximum tension of $(2 \sqrt{2}) W$. Which of the following statement($s$) is(are) correct ?
