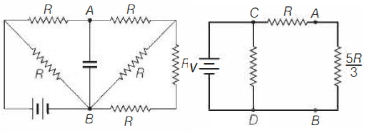

Consider the circuit shown in the figure below. All the resistors are identical. The charge stored in the capacitor, once it is fully charged is
KVPY 2013, Medium
Download our app for free and get started
(d)
When capacitor is fully charged, it acts like an open switch or path. So, we have following equivalent circuit
Clearly, $\quad V_{C D}=V$
So, $V_{A B}=I_{A B} \cdot R_{A B}$
$=\frac{V}{\left(R+\frac{5}{3} R\right)} \cdot\left(\frac{5}{3} R\right)=\frac{5}{8} \,V$
Charge stored on the capacitor is
$Q=C_{A B} \cdot V_{A B}=\frac{5}{8} \,C V$
