11. thermodynamics — Physics STD 11 Science — Question

Rajasthan BoardEnglish MediumSTD 11 SciencePhysics11. thermodynamics1 Mark
MCQ
Consider two containers $A$ and $B$ containing identical gases at the same pressure, volume and temperature. The gas in container $A$ is compressed to half of its original volume isothermally while the gas in container $B$ is compressed to half of its original value adiabatically. The ratio of final pressure of gas in $B$ to that of gas in $A$ is
  • ✓
    $2^{\gamma-1}$
  • B
    ${\left( {\frac{1}{2}} \right)^{\gamma  - 1}}$
  • C
    ${\left( {\frac{1}{{1 - \gamma }}} \right)^2}$
  • D
    ${\left( {\frac{1}{{\gamma - 1 }}} \right)^2}$
✓

Answer

Correct option: A.
$2^{\gamma-1}$
a
When the compression is isothermal for gas in $A$

$P_{2} V_{2}=P_{1} V_{1}$

$P_{2}=P_{1} \frac{V_{1}}{V_{2}}=P_{1} \frac{V_{1}}{V_{1} / 2}=2 P_{1}$

For gas in $\mathrm{B}$, when compression is adiabatic,

$P_{2}^{\prime} V_{2}^{\prime}=P_{1} V_{1}^{\gamma}$

$P_{2}^{\prime}=P_{1}\left(\frac{V_{1}}{V_{2}^{\prime}}\right)^{\gamma}=P_{1}\left(\frac{V_{1}}{V_{1} / 2}\right)^{\gamma}=2^{\gamma} P_{1}$

$\therefore \frac{P_{2}^{\prime}}{P_{2}}=\frac{2^{\gamma} P_{1}}{2 P_{1}}=2^{\gamma-1}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 11. thermodynamics→11. thermodynamics — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

A mass of $5\, {kg}$ is connected to a spring. The potential energy curve of the simple harmonic motion executed by the system is shown in the figure. A simple pendulum of length $4\, {m}$ has the same period of oscillation as the spring system. What is the value of acceleration due to gravity on the planet where these experiments are performed? (In ${m} / {s}^{2}$)
→

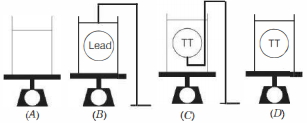

Four identical beakers contain same amount of water as shown below. Beaker $A$ contains only water. A lead ball is held submerged in the beaker $B$ by string from above. A same sized plastic ball, say a table tennis $(TT)$ ball, is held submerged in beaker $C$ by a string attached to a stand from outside. Beaker $D$ contains same sized $TT$ ball which is held submerged from a string attached to the bottom of the beaker. These beakers (without stand) are placed on weighing pans and register readings $w_{A}, w_{B}, w_{C}$ and $w_{D}$ for $A, B, C$ and $D$, respectively. Effects of the mass and volume of the stand and string are to be neglected.
→
