Question

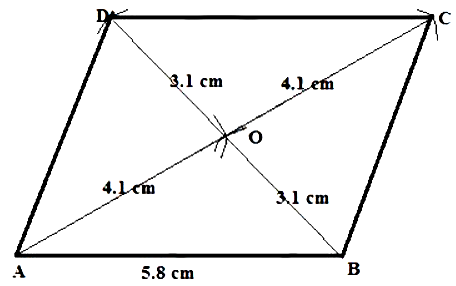

Construct a parallelogram $\text{ABCD},$ when:$AB = 5.8 \ cm,$ diagonal $AC = 8.2 \ cm$ and diagonal $BD = 6.2 \ cm.$
✓
Answer
Steps:
$1.$ Since diagonal of a parallelogram bisect each other, construct $O A B$
such that;
$ OA =\frac{1}{2} AC =\frac{1}{2} \times 8.2 \ cm =4.1 \ cm$
$ OB =\frac{1}{2} BD =\frac{1}{2} \times 6.2 \ cm =3.1 \ cm $
and $A B=5.8 \ cm$.
$2.$ Produce $A O$ up to $C$, such that $O C=O A=4.1 \ cm$ and $B O$ up to $D$,
such that $D O=O B=3.1 \ cm$.
$3.$ Join $AD , DC$, and $CB$.
$\text{ABCD}$ is the required parallelogram.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Factorise the following by taking out the common factors:$(mx + ny)^2 + (nx - my)^2$
→Solve the following systems of equation by using the method of cross multiplication:
$\frac{5}{x}-\frac{4}{y}+2=0, \frac{2}{x}+\frac{3}{y}=13(x \neq 0, y \neq 0)$
→$\frac{5}{x}-\frac{4}{y}+2=0, \frac{2}{x}+\frac{3}{y}=13(x \neq 0, y \neq 0)$
Find the value of:$\frac{\log \sqrt{8}}{8}$

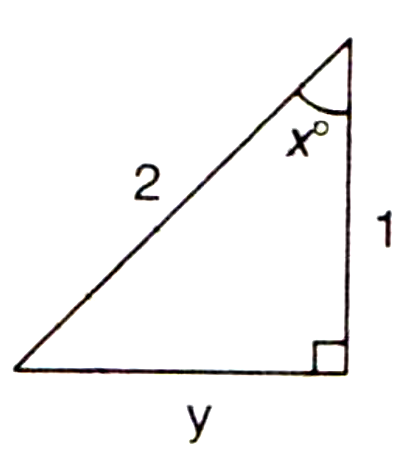

→From the following figure, find:$(i) y,(ii) \sin x^\circ ,(iii) (\sec x^\circ - \tan x^\circ ) (\sec x^\circ + \tan x^\circ )$
→In parallelogram $\text{ABCD}, P$ is a point on side $AB$ and $Q$ is a point on side $BC$.Prove that:$(i) \triangle CPD$ and $\triangle AQD$ are equal in the area$.(ii)$ Area $(\triangle AQD) =$ Area$ (\triangle APD) +$ Area $(\triangle CPB)$
→The exterior angle of a regular polygon is one$-$third of its interior angle. Find the number of sides of the polygon.
→Plot point$ A(5, -7)$. From point $A$, draw $AM$ perpendicular to the $x-$axis and $AN$ perpendicular to the $y-$axis. Write the coordinates of points $M$ and $N.$

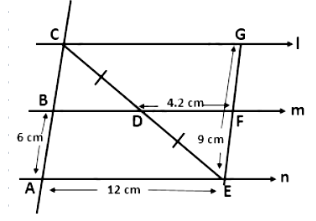

→In the given figure, the lines $l, m$ and $n$ are parallel to each other. $D$ is the midpoint of $CE$. Find: $a. BC, b. EF, c. CG$ and $d. BD.$
