Question
Construct a quadrilateral $ABCD$ in which $AB = BC = 6\ cm, AD = DC = 4.5\ cm$ and $\angle\text{B}=120^\circ.$
✓
Answer
Steps of construction:
Step $I$: Draw $AB = 6\ cm$.
Step $II$: Construct $\angle\text{ABC}=120^\circ.$
Step $III$: With B as the centre and radius $6\ cm$, cut off $BC = 6\ cm$. Now, we can see that $AC$ is about $10.3\ cm$ which is greater than $AD + CD = 4.5 + 4.5 = 9\ cm$.
We know that sum of the lengths of two sides of triangle is always greater than the third side but here, the sum of $AD$ and $CD$ is less than $AC$.
So, construction of the given quadrilateral is not possible.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
What is the percentage increase or decrease in the number of seats bwon by $A, B, C$ and $D$ in the general elections of $2009$ as compared to the results of $2004$?
→|
Political party
|
Number of seats won in 2004
|
Number of seats won in 2009
|
|
$A$
|
$206$
|
$145$
|
|
$B$
|
$116$
|
$138$
|
|
$C$
|
$4$
|
$24$
|
|
$D$
|
$11$
|
$12$
|
$(\text{x}+2)(\text{x}+3)+(\text{x}-3)(\text{x}-2)-2\text{x}(\text{x}+1)=0$

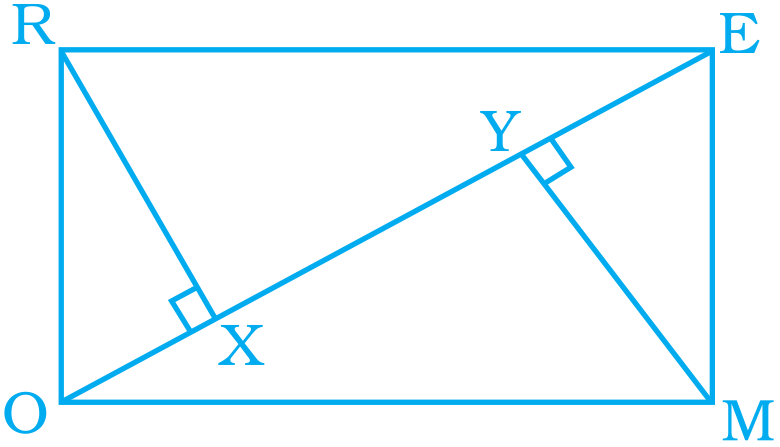

→A rectangular $\text{MORE}$ is shown below:
