Question
Construct a triangle using the following data: $PQ + PR = 10.6 \ cm, QR = 4.8 \ cm$ and $\angle R = 45^\circ $
✓
Answer
$PQ + PR = 10.6 \ cm, QR = 4.8 \ cm$ and $\angle R = 45^\circ $
Steps of construction:
$1.$ Draw a line segment $QR = 4.8 \ cm$
$2.$ With $Q$ as centre, construct $\angle SQR = 45^\circ $
$3.$ Cut $QT = 10.6 \ cm$ on $QS.$
$4$. Join $TR.$
$5$. Draw perpendicular bisector of $TR$ which cuts $QT$ at $P.$
$6.$ Join $PR.$
Thus $\text{PQR}$ is the required triangle.
Steps of construction:
$1.$ Draw a line segment $QR = 4.8 \ cm$
$2.$ With $Q$ as centre, construct $\angle SQR = 45^\circ $
$3.$ Cut $QT = 10.6 \ cm$ on $QS.$
$4$. Join $TR.$
$5$. Draw perpendicular bisector of $TR$ which cuts $QT$ at $P.$
$6.$ Join $PR.$
Thus $\text{PQR}$ is the required triangle.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
From a tap of inner radius $0.80\ cm,$ water flows at the rate of $7\ m/s.$ Find the volume in litres of water delivered by the pipe in $75$ minutes.
→Draw the graph for the equation, given below :$5x + y + 5 = 0$
→If $b=\frac{2 a}{a-2}$, and $c=\frac{4 b-3}{3 b+4}$, then express $c$ in terms of $a$.
→Solve : $8 \times 2^{2 x}+4 \times 2^{x+1}=1+2^x$
→In the given figure, $AD = AB$ and AE bisects $\angle A$.
Prove that :
(i) $BE = ED$
(ii) $\angle ABD >\angle BCA$.
→Prove that :
(i) $BE = ED$
(ii) $\angle ABD >\angle BCA$.
In the given figure;
$BC = 15 \ cm$ and \sin B $=\frac{4}{5}$
→$BC = 15 \ cm$ and \sin B $=\frac{4}{5}$
- Calculate the measure of $AB$ and $AC.$
- Now, if $\tan \angle ADC = 1;$ calculate the measures of $CD$ and $AD.$
Also, show that: $\tan^2B -\frac{1}{\cos ^2 B }=-1$
Compute the compound interest for the third year on $Rs. 5000$ invested for $5$ years at $10\%$ per annum, the interest being payable annually.

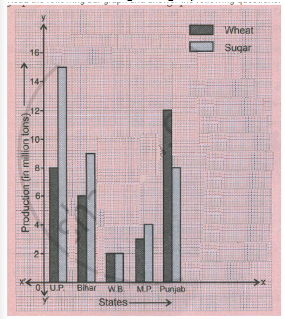

→Read the following bar graph and answer the following questions:
