Question

Construct a triangle using the given data: Perimeter of triangle is $10.6 \ cm$, and the base angles are $60^\circ $ and $45^\circ $

✓

Answer

Perimeter of triangle is $10.6 \ cm$, and the base angles are $60^\circ $ and $45^\circ $

Steps of construction:
$1.$ Draw $DE = 10.6 \ cm.$
$2.$ Draw $DP$ and $EQ$ such that $\angle PDE = 90^\circ $ and $\angle QED = 60^\circ .$
$3$. Draw $AD$ and $AE$, the bisectors of angles $PDE$ and $QED$ respectively, intersecting each other at $A.$
$4$. Draw perpendicular bisectors of $AD$ and $AE$, intersecting $DE$ at points $B$ and $C$ respectively.
$5$. Join $AB$ and $AC.$
Thus, $\text{ABC}$ is the required triangle.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "[5 marks sum]" from Constructions of Triangles→Constructions of Triangles — all question types→MATHEMATICS STD 9 question papers→ICSE Board STD 9 question papers→ICSE Board question paper generator→

Similar questions

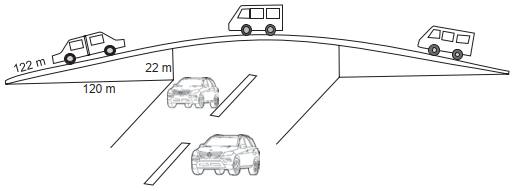

Case Study : In most of the Indian metropolitan cities, government has made many flyovers to regulate the traffic flow. One of such flyover is shown below. The triangular side walls of the flyover have been used for advertisements. One of such side walls has lengths 122 m, 120 m and 22 m. The rate of advertisement on this wall is ₹ 1000 per $m ^2$ per year. A private company hired this wall for 4 months.

Based on the above information, answer the following questions:
1. Semi-perimeter of the triangular wall is :
(a) 130 m (b) 132 m (c) 134 m (d) 135 m
2. Area of the triangular wall is :
(a) $1400 m^2$ (b) $1350 m^2$ (c) $1340 m^2$ (d) $1320 m^2$
3. Total amount paid by the company as rent for the wall is:
(a) ₹ 4,00,000 (b) ₹ 4,20,000 (c) ₹ 4,40,000 (d) ₹ 13,20,000
Another company paid ₹ 5,50,000 as rent for the same wall. For how many months did the company hire the wall?
(a) 5 (b) 6 (c) 7 (d) 8
Which of the following is the correct formula for finding the area of a triangle of sides x, y, z and semi perimeter p?
(a) Area $=p(p-x)(p-y)(p-z)$
(b) Area $=\sqrt{p(p+x)(p+y)(p+z)}$
(c) Area $=\sqrt{(p-x)(p-y)(p-z)}$
(d) Area $=\sqrt{p(p-x)(p-y)(p-z)}$

→

The marks of $24$ candidates in the subject mathematics are given below:

$45$	$48$	$15$	$23$	$30$	$35$	$40$	$11$
$29$	$0$	$3$	$12$	$48$	$50$	$18$	$30$
$15$	$30$	$11$	$42$	$23$	$2$	$3$	$44$

The maximum marks are $50.$ Make a frequency distribution taking class intervals $0 - 10, 10-20,\dots .......$

If $4 \sin \theta=\sqrt{13}$, find the value of $\frac{4 \sin \theta-3 \cos \theta}{2 \sin \theta+6 \cos \theta}$

Sudhakar borrows ₹ 22500 at 10% per annum, compounded annually. If he repays ₹ 11250 at the end of first year and ₹ 12550 at the end of the second year, find the amount of loan outstanding against him at the end of the third year.

Express the following decimal as a rational number.$0.017$

The length of a room exceeds its breadth by 3 metres. If the length is increased by 3 m and breadth is decreased by 2 metres, the area remains the same. Find the length and breadth of the room.

Can the following equations hold simultaneously?$7y - 3x = 7;5y - 11x = 87;5x + 4y = 43$.If yes, find the value of $x$ and $y.$

$\triangle PQR$ is isosceles with $PQ = QR. QR$ is extended to $S$ so that $\triangle PRS$ becomes isosceles with $PR = PS.$ Show that $\angle PSR .SP : \angle QPS = 1 : 3$

Solve the following pairs of equations$:\frac{x y}{x+y}=\frac{6}{5};\frac{x y}{y-x}=6$,Where $x+y \neq 0$ and $y-x \neq 0$

The length of a rectangle is $30 \ cm$ more than its breadth. The perimeter of the rectangle is $180 \ cm$. Find the length and the breadth of the rectangle.
