Question
Construct a triangle using the given data: $PQ = 6.2\ cm, \angle P = 105^\circ $ and $\angle = 45^\circ $
✓
Answer
$PQ = 6.2\ cm, \angle P = 105^\circ $ and $\angle = 45^\circ $
Steps of Construction:
$1$. Draw a line segment $PQ = 6.2\ cm.$
$2$. With $P$ as centre, draw an arc meeting $PQ$ at $A.$
$3$. With $A$ as centre and same radius, cut the arc at $B$ and with $BQ$ as centre and same radius, cut the arc at $C.$
$4$. With $B$ and $C$ as centre, cut arcs and draw $PM$ perpendicular to $PQ.$
$5$. Bisect $\angle MPC$. Let $PX$ be the bisector. $PX$ makes an angle of $105^\circ $ with $PQ.$
$6$. With $Q$ as centre, draw an arc meeting $PQ$ at $S.$
$7$. With $S$ as centre and same radius, cut the arc at $T$ and with $T$ as centre and same radius, cut the arc at $U.$
$8.$ With $T$ and $U$ as centre, cut arcs and draw $QN$ perpendicular to $PQ.$
$9$. Bisect $\angle NQP.$ Let $QY$ be the bisector. $QY$ makes an angle of $45^\circ $ with $PQ.$
$10.$ Mark the point as $R$, where $PX$ and $QY$ cut each other.
Thus,$\text{PQR}$ is the required triangle.
Steps of Construction:
$1$. Draw a line segment $PQ = 6.2\ cm.$
$2$. With $P$ as centre, draw an arc meeting $PQ$ at $A.$
$3$. With $A$ as centre and same radius, cut the arc at $B$ and with $BQ$ as centre and same radius, cut the arc at $C.$
$4$. With $B$ and $C$ as centre, cut arcs and draw $PM$ perpendicular to $PQ.$
$5$. Bisect $\angle MPC$. Let $PX$ be the bisector. $PX$ makes an angle of $105^\circ $ with $PQ.$
$6$. With $Q$ as centre, draw an arc meeting $PQ$ at $S.$
$7$. With $S$ as centre and same radius, cut the arc at $T$ and with $T$ as centre and same radius, cut the arc at $U.$
$8.$ With $T$ and $U$ as centre, cut arcs and draw $QN$ perpendicular to $PQ.$
$9$. Bisect $\angle NQP.$ Let $QY$ be the bisector. $QY$ makes an angle of $45^\circ $ with $PQ.$
$10.$ Mark the point as $R$, where $PX$ and $QY$ cut each other.
Thus,$\text{PQR}$ is the required triangle.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
In the adjoining figure, ABCD is a parallelogram. Any line through A cuts DC at a point P and BC produced at Q. Prove that :ar $(\triangle BPC )=\operatorname{ar}(\triangle DPQ )$.
→The difference between selling an article at $8\%$ profit and at $12\%$ profit is $Rs.72$. Find the cost price of the article and also the two selling prices.
→Two numbers are in the ratio $4:5$. If $30$ is subtracted from each of the numbers, the ratio becomes $1:2.$ Find the numbers.
→$\triangle ABC$ is right angled at $A. AD$ is drawn perpendicular to $BC.$ If $AB = 8\ cm$ and $AC = 6\ cm,$ calculate $BD.$
→Solve the following pairs of equations$:\ \frac{x}{3}+\frac{y}{4}=11,\frac{5 x}{6}-\frac{y}{3}=-7$
→Solve the following equations graphically $\ :x + 3y = 8 , 3x = 2 + 2y$
→Find two numbers such that the sum of thrice the first and the second is 142 and four times the first exceeds the second by 138.
Solve the following simultaneou equation graphically :
2x + 3y = 2 and x - 2y = 8
2x + 3y = 2 and x - 2y = 8
A kite is flying at a height of 120 m from the level ground. It is attached to a string inclined at 60 to the horizontal. Find the length of the string. (Take $\sqrt{3}=1.73$.)

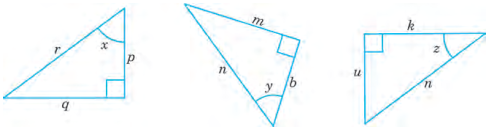

→Look at the figures given below :
