Question
Construct a $\triangle\text{PQR},$ in which $PQ = 6cm, QR = 7cm$ and $PR = 8cm.$ Then, construct another triangle whose sides are $\frac{4}{5}\text{ times}$ the corresponding sides of $\triangle\text{PQR}.$
✓
Answer
Steps of construction:
Step 1. Draw a line segment $QR = 7cm.$
Step 2. With $Q$ as centre and radius 6cm, draw an arc.
Step 3. With $R$ as centre and radius 8cm, draw an arc cutting the previous arc at $P$.
Step 4. Join $PQ$ and $PR$. Thus, $\triangle\text{PQR}$ is the required triangle.
Step 5. Below $QR$, draw an acute angle $\angle\text{RQX}.$
Step 6. Along $QX$, mark five points $R_1, R_2, R_3, R_4$ and $R_5$ such that $QR_1 = R_1R_2 = R_2R_3 = R_3R_4= R_4R_5.$
Step 7. Join $RR_5.$
Step 8. From $R_4$, draw $R_4R' || RR_5$ meeting $QR$ at $R'.$
Step 9. From $R'$, draw $P'R' || PR$ meeting $PQ$ in $P'$. Here, $\triangle\text{P}'\text{QR}'$ is the required triangle, each of whose sides are $\frac{4}{5}\text{ times}$ the corresponding sides of $\triangle\text{PQR}.$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Find all the zeros of the polynomial $(2x^4 - 11x^3 + 7x^2 + 13x)$, it being given that two if its zeros are $3+\sqrt2$ and $3-\sqrt2.$
→A bucket of height 24cm is in the form of frustum of a cone whose circular ends are of diameter 28cm and 42cm. Find the cost of milk at the rate of ₹ 30 per litre, which the bucket can hold.

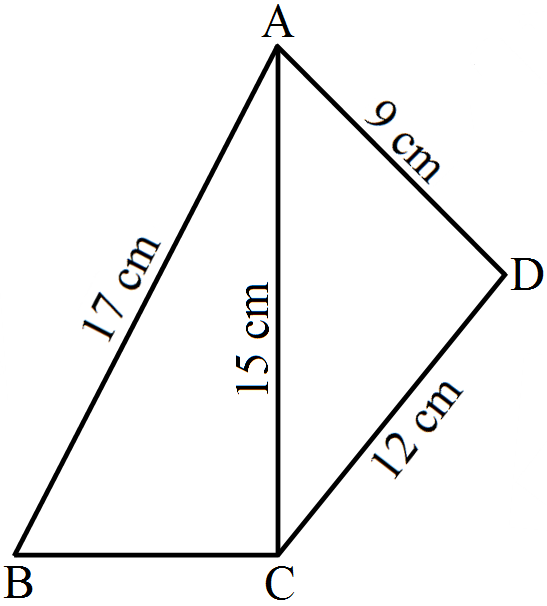

Find the perimeter and area of the quadrilateral ABCD in which AB = 17cm, AD = 9cm, CD = 12cm, $\angle\text{ACB} = 90^\circ$ and AC = 15cm.
→Solve each of the following given systems of equations graphically and find the vertices and area of the triangle formed by these lines and the x-axis:
2x - 3y + 4 = 0, x + 2y - 5 = 0
2x - 3y + 4 = 0, x + 2y - 5 = 0
If three circles of radius a each, drawn such that each touches the other two, prove that the area included between included between them is equal to $\frac{4}{25}\text{a}^2.$ $\big[\text{Take } \sqrt{3}=1.73\text{ and}\ \pi=3.14\big]$
→Find the number of term of the AP $-12, -9, -6, ....,21$. If i is added to each term of this AP then find the sum of all terms of the AP thus obtained.
→Solve the following quadratic equation:
$\frac{\text{x}-4}{\text{x}-5}+\frac{\text{x}-6}{\text{x}-7}=3\frac{1}{3},$ $\text{x}\neq5,7$
→$\frac{\text{x}-4}{\text{x}-5}+\frac{\text{x}-6}{\text{x}-7}=3\frac{1}{3},$ $\text{x}\neq5,7$

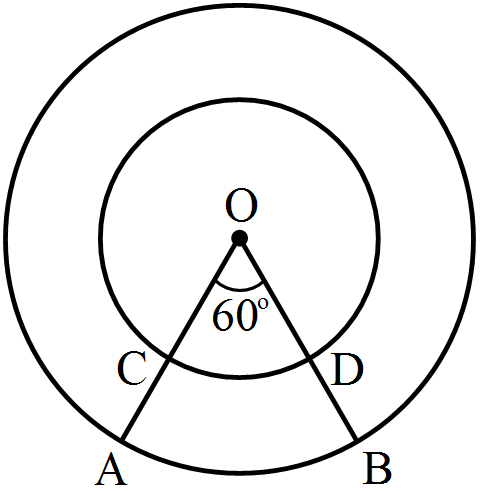

In the given figure, two concentric circles with centre $O$ have radii $21\ cm$ and $42\ cm$. If $\angle\text{AOB}=60^\circ,$ find the area of the shaded region. $\Big[\text{Use }\pi=\frac{22}{7}.\Big]$
→The production yield per hectare of wheat of some farms of a village are given in the following table:
Draw a less than type ogive and a more than type ogive for this data.
|
Production yield (in kg/ha)
|
40-45
|
45-50
|
50-55
|
55-60
|
60-65
|
65-70
|
70-75
|
75-80
|
80-85
|
|
Number of farms
|
1
|
9
|
15
|
18
|
40
|
26
|
16
|
14
|
10
|
Solve for x and y:
$\frac{5}{\text{x}+\text{1}}-\frac{2}{\text{x}-\text{1}}=\frac{1}{2}$
$\frac{10}{\text{x}+\text{1}}+\frac{2}{\text{y}-\text{1}}=\frac{5}{2}$
→$\frac{5}{\text{x}+\text{1}}-\frac{2}{\text{x}-\text{1}}=\frac{1}{2}$
$\frac{10}{\text{x}+\text{1}}+\frac{2}{\text{y}-\text{1}}=\frac{5}{2}$
