Question

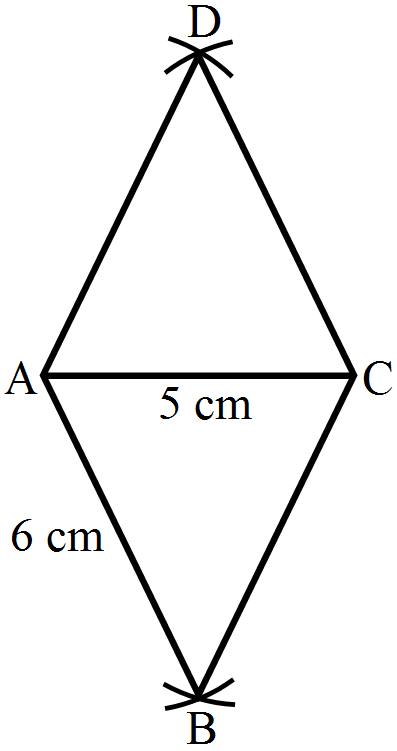

Draw a rhombus ABCD, if AB = 6cm and AC = 5cm.
✓
Answer
- Draw a line segment AC of 5cm.
- With A as centre, draw an arc of radius 6cm on each side of AC.
- With C as centre, draw an arc of radius 6cm on each side of AC. These arcs intersect the arcs of step 2 at B and D.
- Join AB, AD, CD and CB.
