Draw ray diagrams showing the image formation by a convex lens when an object is placed: At infinity.

Identify the device used as a spherical mirror or lens in following cases, when the image formed is virtual and erect in each case.Object is placed between infinity and device, image formed is diminished and between focus and optical centre on the same side as that of the object.

Draw ray diagrams showing the image formation by a convex lens when an object is placed:Between focus and twice the focal length of the lens.

Identify the device used as a spherical mirror or lens in following cases, when the image formed is virtual and erect in each case.Object is placed between infinity and device, image formed is diminished and between pole and focus, behind it.

Draw ray diagrams showing the image formation by a convex mirror when an object is placed: At infinity.

Draw ray diagrams showing the image formation by a concave mirror when an object is placed:A little beyond centre of curvature of the mirror.

Draw ray diagrams showing the image formation by a concave mirror when an object is placed:At infinity.

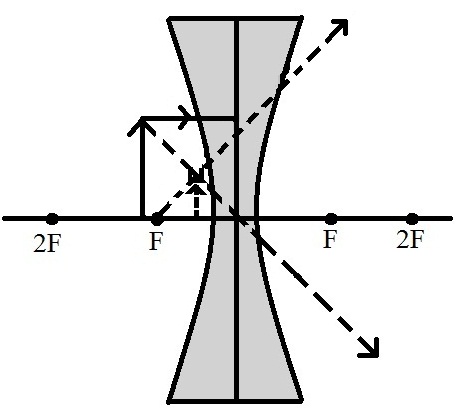

Draw ray diagrams showing the image formation by a concave lens when an object is placed:Between focus and twice the focal length of the lens.

Draw ray diagrams showing the image formation by a concave mirror when an object is placed:
Between pole and focus of the mirror.

Draw ray diagrams showing the image formation by a convex lens when an object is placed:At twice the focal length of the lens.
