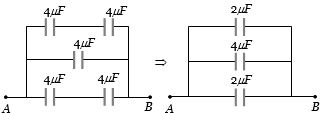

Equivalent capacitance between $A$ and $B$ is......$\mu \,F$
Medium
Download our app for free and get started
(a) $C_{AB} = 8\, \mu F$
