Question
Explain combination of cells in parallel.
✓
Answer

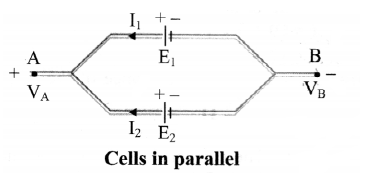

$i.$ Consider two cells which are connected in parallel. Here, positive terminals of all the cells are connected together and the negative terminals of all the cells are connected together.
$ii.$ In parallel connection, the current is divided among the branches i.e. $I_1$ and $I_2$ as shown in figure.
$iii$. Consider points $A$ and $B$ having potentials $V_A$ and $V_B$, respectively.
$iv.$ For the first cell the potential difference across its terminals is, $V=V_A-V_B=E_1-I_1 r_1$
$\therefore I _1=\frac{E_1 V}{r_1}.........(1)$
$v.$ Point $A$ and $B$ are connected exactly similarly to the second cell.
Hence, considering the second cell,
$V = V _{ A }- V _{ B }= E _2- I _2 r _2$
$\therefore I _2=\frac{E_2 V}{r_2} \ldots \ldots \ldots \ldots(2)$
$vi.$ Since, $I=I_1+I_2$
Combining equations $(1), (2)$ and $(3),$
$\therefore I=\frac{E_1}{r_1}-\frac{V}{r_1}+\frac{E_2}{r_2}-\frac{V}{r_2}=\left(\frac{E_1}{r_1}+\frac{E_2}{r_2}\right)-V\left(\frac{1}{r_1}+\frac{1}{r_2}\right)$
$vii.$ Thus, $V\left(\frac{1}{r_1}+\frac{1}{r_2}\right)=\left(\frac{E_1}{r_1}+\frac{E_2}{r_2}\right)-I$
$\therefore V\left(\frac{r_1+r_2}{r_1 r_2}\right)=\frac{E_1 r_2+E_2 r_1}{r_1 r_2}-I$
$ V=\frac{E_1 r_2+E_2 r_1}{r_1+r_2}-I \frac{r_1 r_2}{r_1+r_2}$
$viii.$ If we replace the cells by a single cell connected between points $A$ and $B$ with the emf $E_{e q}$ and the internal resistance $r_{e q}$ then,
$V = E _{ eq }- Ir _{ eq }$
From equations $(4)$ and $(5),$
$E_{e q}=\frac{E_1 r_2+E_2 r_1}{r_1+r_2}$
$r_{e q}=\frac{r_1 r_2}{r_1+r_2}$
$\text { i.e. } \frac{1}{r_{ rq }}=\frac{1}{r_1}+\frac{1}{r_2}$
$\frac{E_{ eq }}{r_{ rq }}=\frac{E_1}{r_1}+\frac{E_2}{r_2}$
$ix.$ For $n$ number of cells connected in parallel with emf $E_1, E_2, E_3, \ldots \ldots \ldots \ldots ., E_n$ and internal
resistance $r _1, r _2, r _3, \ldots \ldots \ldots ., r _{ n }$
$\frac{1}{ r _{ rq }}=\frac{1}{ r _1}+\frac{1}{ r _2}+\frac{1}{ r _3}+\ldots \ldots \ldots+\frac{1}{ r _{ n }}$
and $\frac{ E _{ eq }}{ r _{ rq }}=\frac{ E _1}{ r _1}+\frac{ E _2}{ r _2}+\ldots \ldots \ldots+\frac{ E _{ n }}{ r _{ n }}$
$ii.$ In parallel connection, the current is divided among the branches i.e. $I_1$ and $I_2$ as shown in figure.
$iii$. Consider points $A$ and $B$ having potentials $V_A$ and $V_B$, respectively.
$iv.$ For the first cell the potential difference across its terminals is, $V=V_A-V_B=E_1-I_1 r_1$
$\therefore I _1=\frac{E_1 V}{r_1}.........(1)$
$v.$ Point $A$ and $B$ are connected exactly similarly to the second cell.
Hence, considering the second cell,
$V = V _{ A }- V _{ B }= E _2- I _2 r _2$
$\therefore I _2=\frac{E_2 V}{r_2} \ldots \ldots \ldots \ldots(2)$
$vi.$ Since, $I=I_1+I_2$
Combining equations $(1), (2)$ and $(3),$
$\therefore I=\frac{E_1}{r_1}-\frac{V}{r_1}+\frac{E_2}{r_2}-\frac{V}{r_2}=\left(\frac{E_1}{r_1}+\frac{E_2}{r_2}\right)-V\left(\frac{1}{r_1}+\frac{1}{r_2}\right)$
$vii.$ Thus, $V\left(\frac{1}{r_1}+\frac{1}{r_2}\right)=\left(\frac{E_1}{r_1}+\frac{E_2}{r_2}\right)-I$
$\therefore V\left(\frac{r_1+r_2}{r_1 r_2}\right)=\frac{E_1 r_2+E_2 r_1}{r_1 r_2}-I$
$ V=\frac{E_1 r_2+E_2 r_1}{r_1+r_2}-I \frac{r_1 r_2}{r_1+r_2}$
$viii.$ If we replace the cells by a single cell connected between points $A$ and $B$ with the emf $E_{e q}$ and the internal resistance $r_{e q}$ then,
$V = E _{ eq }- Ir _{ eq }$
From equations $(4)$ and $(5),$
$E_{e q}=\frac{E_1 r_2+E_2 r_1}{r_1+r_2}$
$r_{e q}=\frac{r_1 r_2}{r_1+r_2}$
$\text { i.e. } \frac{1}{r_{ rq }}=\frac{1}{r_1}+\frac{1}{r_2}$
$\frac{E_{ eq }}{r_{ rq }}=\frac{E_1}{r_1}+\frac{E_2}{r_2}$
$ix.$ For $n$ number of cells connected in parallel with emf $E_1, E_2, E_3, \ldots \ldots \ldots \ldots ., E_n$ and internal
resistance $r _1, r _2, r _3, \ldots \ldots \ldots ., r _{ n }$
$\frac{1}{ r _{ rq }}=\frac{1}{ r _1}+\frac{1}{ r _2}+\frac{1}{ r _3}+\ldots \ldots \ldots+\frac{1}{ r _{ n }}$
and $\frac{ E _{ eq }}{ r _{ rq }}=\frac{ E _1}{ r _1}+\frac{ E _2}{ r _2}+\ldots \ldots \ldots+\frac{ E _{ n }}{ r _{ n }}$
