Question
Explain electric field produced by the point electric charge.
✓
Answer
►Let us consider a point charge $Q$ placed in vacuum, at the origin $O$. If we place another point charge q at a point P , where $\overrightarrow{ OP }=\vec{r}$, then the charge $Q$ will exert a force on $q$ as per Coulomb's law.
►The external effect which produces force on charge q , is called electric field of charge $Q$.
►Electric field at point ' P '
$\overrightarrow{ E }(r)=\frac{1}{4 \pi \varepsilon_0} \cdot \frac{ Q }{r^2} \cdot \hat{r}$
Where $\hat{r}$ is the unit vector in the direction of electric field.
►The area around any electric charge or electric charge system where its effect prevails is called the electric field of the electric charge or electric charge system.
OR
►"In the region of an electric charge, or a system of charge, the electrostatic force acting on a unit positive charge placed at some point is called
the electric field of the given electric charge / system of charges."
►Electric field is a vector quantity.
►Its unit is $N / C$ or $V / m .\left( M ^1 L^1 T^{-3} A^{-1}\right)$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Calculate the potential energy of a system of two charges in an external field.
Horizontal component of earth’s magnetic field at a place is $\sqrt{3}$ times its vertical component. What is the value of angle of dip at that place?
→A parallel beam of monochromatic light of wavelength 663nm is incident on a totally reflecting plane mirror. The angle of incidence is 60° and the number of photons striking the mirror per second is 1.0 × 1019. Calculate the force exerted by the light beam on the mirror.
Explain the unit of mass.
You are facing a circular wire carrying an electric current. The current is clockwise as seen by you. Is the field at the centre coming towards you or going away from you?
A cell of emf ‘E’ and internal resistance ‘r’ is connected across a variable resistor ‘R’. Plot a graph showing variation of terminal voltage ‘V’ of the cell versus the current ‘I’. Using the plot, show how the emf of the cell and its internal resistance can be determined.
Suppose you have three resistors of $20\Omega,50\Omega$ and $100\Omega.$ What minimum and maximum resistance can you obtain from these resistors?

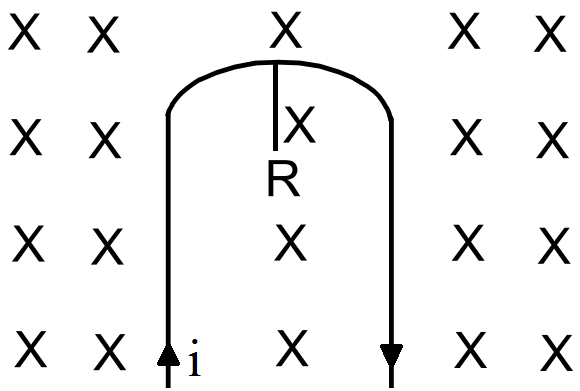

→A rigid wire consists of a semi-circular portion of radius R and two straight sections The wire is partially immersed in a perpendicular magnetic field B, as shown in the figure. Find the magnetic force on the wire if it carries a current i.
