Moving Charges and Magnetism — Physics STD 12 Science — Question

Gujarat BoardEnglish MediumSTD 12 SciencePhysicsMoving Charges and Magnetism5 Marks
Question
  1. Explain, giving reasons, the basic difference in converting a galvanometer into (i) a voltmeter and (ii) an ammeter.
  2. Two long straight parallel conductors carrying steady currents I1 and I2 are separated by a distance 'd'. Explain briefly, with the help of a suitable diagram, how the magnetic field due to one conductor acts on the other. Hence deduce the expression for the force acting between the two conductors. Mention the nature of this force.
✓

Answer

  1. A galvanometer can be converted into a voltmeter by connecting a high resistance in series with its coil.
  2. A galvanometer can be converted into an ammeter by connecting a low resistance in parallel to its coil.

Alternate Answer

The magnetic field, due to wire – 1, at any point on the wire – 2, is directed normal to the direction of current flowin wire – 2.

Expression for force

B21 =Magnetic field atwire – 2, due to a current I1 in

wire $ - 1 = \frac{\mu_{o}\text{I}_{1}}{2\pi\text{r}}$

Force upon conductor carrying current due to magnetic field

$\overrightarrow{\text{F}} = \text{I}(\overrightarrow{\ell}\times\overrightarrow{\text{B}})$

$\therefore\text{ Force, F}_{21}\text{ on a length l of wire} – 2 = \text{I}_{2} . l.\frac{\mu_{o}\text{I}_{1}}{2\pi\text{r}}$

$ =\frac{\mu_{o}\text{I}_{1}\text{I}_{2}}{2\pi\text{r}}l$

$\text{Similarly,} = \text{F}_{12} = \frac{\mu_{0}\text{I}_{1}\text{I}_{2}}{2\pi\text{r}}l$

Nature
The force is repulsive for currents in opposite direction and attractive when currents flow in the same direction.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Moving Charges and Magnetism→Moving Charges and Magnetism — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

A long, straight wire carrying a current of 30A is placed in an external, uniform magnetic field of 4.0 × 10-4T parallel to the current. Find the magnitude of the resultant magnetic field at a point 2.0cm away from the wire.
→

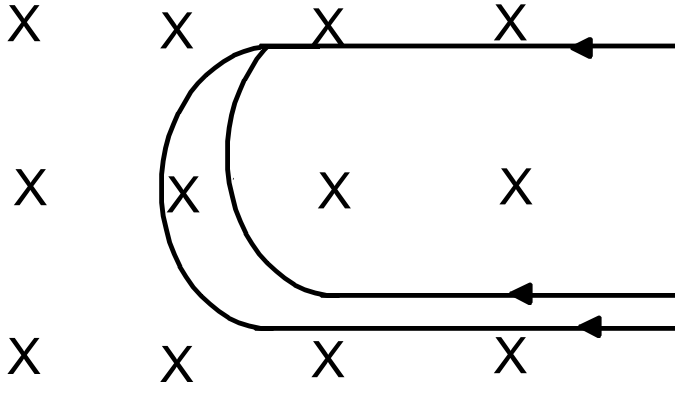

A narrow beam of singly-charged carbon ions, moving at a constant velocity of 6.0 × 104m s-1, is sent perpendicularly in a rectangular region of uniform magnetic field B = 0.5T It is found that two beams emerge from the field in the backward direction, the separations from the incident beam being 3.0cm and 3.5cm. Identify the isotopes present in the ion beam. Take the mass of an ion = A(1.6 × 10-27)kg, where A is the mass number.

→
