Question
Explain how tidal energy can be used to generate electricity.
✓
Answer

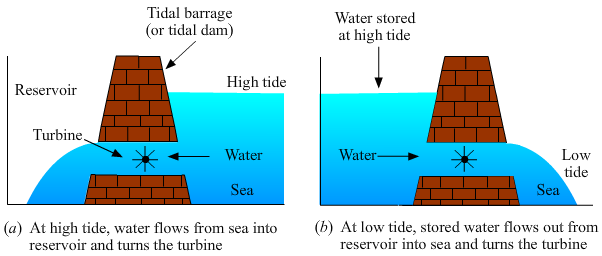

During high tide, when the level of water in the sea is high, sea-water flows into the reservoir of the barrage and turns the turbines. The turbines then turn the generator to produce the electricity. And during the low tide, when the level of sea-water is low, the sea-water stored in the barrage reservoir is allowed to flow out into the sea. This flowing water also turns the turbines and generates electricity.
