Question
Explain quantitatively the order of magnitude difference between the diamagnetic susceptibility of N2 (~5 × 10-9) (at STP) and Cu (~10-5).
✓
Answer
Key concept:
Magnetic susceptibility: It is the property of the substance which shows how easily a substance can be magnetised. It can also be defined as the ratio of intensity of magnetisation (I) in a substance to the magnetic intensity (H) applied to the substance, i.e., $\text{XM}=\frac{\text{I}}{\text{H}}$.
According to the problem, we have
Density of nitrogen $\rho_{\text{N}_2}=\frac{28\text{g}}{22.4\text{L}}=\frac{28\text{g}}{22400\text{cc}}$
Also, density of copper $\rho_{\text{Cu}}=\frac{8\text{g}}{22.4\text{L}}=\frac{8\text{g}}{22400\text{cc}}$
So, ration of both densities
$\frac{\rho_{\text{N}_2}}{\rho_\text{Cu}}=\frac{28}{22400}\times\frac{1}{8}=16\times10^{-4}$
Also given $\frac{\chi_{\text{N}_2}}{\chi_\text{Cu}}=\frac{5\times10^{-9}}{10^{-5}}=5\times10^{-4}$
we know that, $\chi=\frac{\text{Magentisation (M)}}{\text{Magnetic intensity (H)}}$
$=\frac{\text{Magnetic moment (M)/Volime (V)}}{\text{H}}$
$=\frac{\text{M}}{\text{HV}}=\frac{\text{M}}{\text{H}(\text{mass/density})}=\frac{\text{M}\rho}{\text{Hm}}$
$\chi\propto\rho\ \ \Big(\because\ \frac{\text{M}}{\text{Hm}}=\text{constant}\Big)$
Hence, $\frac{\chi_{\text{N}_2}}{\chi_\text{Cu}}=\frac{\rho_{\text{N}_2}}{\rho_\text{Cu}}=1.6\times10^{-4}$
Therefore, we can say that magnitude difference or major difference between the diamagnetic susceptibility of N2 and Cu is 1.6 × 10-4.
Magnetic susceptibility: It is the property of the substance which shows how easily a substance can be magnetised. It can also be defined as the ratio of intensity of magnetisation (I) in a substance to the magnetic intensity (H) applied to the substance, i.e., $\text{XM}=\frac{\text{I}}{\text{H}}$.
According to the problem, we have
Density of nitrogen $\rho_{\text{N}_2}=\frac{28\text{g}}{22.4\text{L}}=\frac{28\text{g}}{22400\text{cc}}$
Also, density of copper $\rho_{\text{Cu}}=\frac{8\text{g}}{22.4\text{L}}=\frac{8\text{g}}{22400\text{cc}}$
So, ration of both densities
$\frac{\rho_{\text{N}_2}}{\rho_\text{Cu}}=\frac{28}{22400}\times\frac{1}{8}=16\times10^{-4}$
Also given $\frac{\chi_{\text{N}_2}}{\chi_\text{Cu}}=\frac{5\times10^{-9}}{10^{-5}}=5\times10^{-4}$
we know that, $\chi=\frac{\text{Magentisation (M)}}{\text{Magnetic intensity (H)}}$
$=\frac{\text{Magnetic moment (M)/Volime (V)}}{\text{H}}$
$=\frac{\text{M}}{\text{HV}}=\frac{\text{M}}{\text{H}(\text{mass/density})}=\frac{\text{M}\rho}{\text{Hm}}$
$\chi\propto\rho\ \ \Big(\because\ \frac{\text{M}}{\text{Hm}}=\text{constant}\Big)$
Hence, $\frac{\chi_{\text{N}_2}}{\chi_\text{Cu}}=\frac{\rho_{\text{N}_2}}{\rho_\text{Cu}}=1.6\times10^{-4}$
Therefore, we can say that magnitude difference or major difference between the diamagnetic susceptibility of N2 and Cu is 1.6 × 10-4.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Draw a ray diagram of image formation by a concave mirror and establish the relation between object distance $(u)$, image distance ($v$) and focal length $(f)$.
→State Biot-Savart law. Use it to derive an expression for the magnetic field at the centre of a circular loop of radius R carrying a steady current I. Sketch the magnetic field lines for such a current carrying loop.
An electron and a positron are released from (0, 0, 0) and (0, 0, 1.5R) respectively, in a uniform magnetic field $\text{P}=\text{B}_0\vec{\text{i}}$, each with an equal momentum of magnitude p = eBR. Under what conditions on the direction of momentum will the orbits be nonintersecting circles?
→(A) Explain the follwing :
(i) E-mail, (ii) File transfer, (iii) WWW, (iv) Fax, (v) E-commerce, (vi) Instant Relay Chat (IRC).
(B) What is co-axial cable ? State its uses.
(i) E-mail, (ii) File transfer, (iii) WWW, (iv) Fax, (v) E-commerce, (vi) Instant Relay Chat (IRC).
(B) What is co-axial cable ? State its uses.
- Draw the ray diagram of an astronomical telescope when the final image is formed at infinity. Write the expression for the resolving power of the telescope.
- An astronomical telescope has an objective lens of focal length 20m and eyepiece of focal length 1cm.
- Find the angular magnification of the telescope.
- If this telescope is used to view the Moon, find the diameter of the image formed by the objective lens. Given the diameter of the Moon is 3.5 × 106m and radius of lunar orbit is 3.8 × 108m.

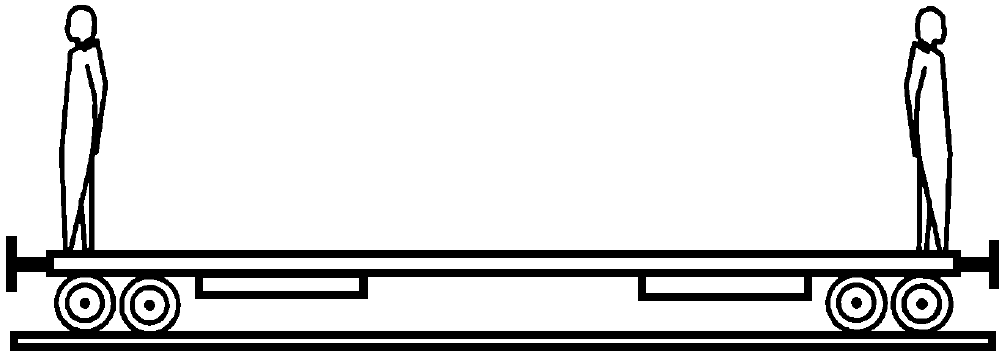

Two persons each of mass m are standing at the two extremes of a railroad car of mass M resting on a smooth track. The person on left jumps to the left with a horizontal speed u with respect to the state of the car before the jump. Thereafter, the other person jumps to the right, again with the same horizontal speed u with respect to the state of the car before his jump. Find the velocity of the car after both the persons have jumped off.
