Question
Explain the I-V characteristic of a forward biased junction diode.
✓
Answer

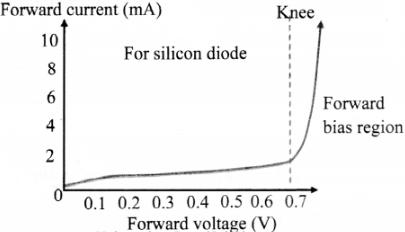

- Figure given below shows the I-V characteristic of a forward biased diode.
- When connected in forward bias mode, initially, the current through diode is very low and then there is a sudden rise in the current.
- The point at which current rises sharply is shown as the ‘knee’ point on the I-V characteristic curve.
- The corresponding voltage is called the knee voltage. It is about 0.7 V for silicon and 0.3 V for germanium.
- A diode effectively becomes a short circuit above this knee point and can conduct a very large current.
- To limit current flowing through the diode, resistors are used in series with the diode.
- If the current through a diode exceeds the specified value, the diode can heat up due to the Joule’s heating and this may result in its physical damage.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Mass of an Oxygen molecule is $5.35 \times 10^{-26} \ kg$ and that of a Nitrogen molecule is $4.65 \times 10^{-26} \ kg.$ During their Brownian motion $($random motion$)$ in air, an Oxygen molecule travelling with a velocity of 400 m/s collides elastically with a nitrogen molecule travelling with a velocity of $500 \ m/s$ in the exactly opposite direction. Calculate the impulse received by each of them during collision. Assuming that the collision lasts for
$1 \ ms,$ how much is the average force experienced by each molecule?
→$1 \ ms,$ how much is the average force experienced by each molecule?
Derive relation between electric field $(E)$ and electric potential $(V).$
→What is Avalanche breakdown and zener breakdown?
While decreasing linearly from $5\ N$ to $3\ N,$ a force displaces an object from $3\ m$ to $5\ m.$ Calculate the work done by this force during this displacement. [Ans: $8\ N$]
→What are some commonly known facts about magnetism?
Why do astronauts in an orbiting satellite have a feeling of weightlessness?
Estimate the number of images produced if a tiny object is kept in between two plane mirrors inclined at $35^\circ , 36^\circ , 40^\circ $ and $45^\circ $.
→Derive expression for electric intensity at a point on the axis of an electric dipole.

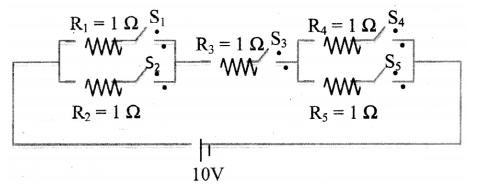

Answer the following questions from the circuit given below. [ $S_1, S_2, S_3, S_4, S_5 \Rightarrow$ Switches]. Calculate the current (I) flowing in the following cases:
