Question
  1. Find equivalent capacitance between A and B in the combination given below. Each capacitor is of 2 μF capacitance.

  1. If a dc source of 7 V is connected across AB, how much charge is drawn from the source and what is the energy stored in the network?
✓

Answer

Capacitors  $C_2$, $C_3$ $\text{and}$ $C_4 $$\ \ \text{are in parallel}$

$\therefore C_{234}=C_2+C_3+C_4$

$\therefore C_{234}=6\mu F$

Capacitors $C_1$,$​​​​C_{234}$ $\text{and}$  $C_5$ are in series

$\frac{1}{C_{eq}}=\frac{1}{C_1}+\frac{1}{C_{234}}+\frac{1}{C_5}=\frac{1}{2}+\frac{1}{6}+\frac{1}{2}$

$=\frac{7}{6}\mu F$

$C_{equivalent}=\frac{6}{7}\mu F$

Charge drawn from the source

$Q=C_{eq}V,$

$=\frac{6}{7}\times7\mu C=6\mu C$

Energy stored $U=\frac{Q^2}{2C}$

$=\frac{6\times6\times10^{-12}\times7}{2\times6\times10^{-6}}\text{J}$

$=21\mu \text{J}$.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Electrostatic Potential and Capacitance→Electrostatic Potential and Capacitance — all question types→Physics STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

  1. What characteristic property of nuclear force explains the constancy of binding energy per nucleon (BE/A) in the range of mass number 'A' lying 30 <A < 170?
  2. Show that the density of nucleus over a wide range of nuclei is constantindependent of mass numberA.
→
  1. Six lead-acid type of secondary cells each of emf 2.0 V and internal resistance $0.015\Omega$ are joined in series to provide a supply to a resistance of $8.5\ \Omega.$ What are the current drawn from the supply and its terminal voltage?
  2. A secondary cell after long use has an emf of 1.9 V and a large internal resistance of $380\ \Omega$ What maximum current can be drawn from the cell? Could the cell drive the starting motor of a car?
→
  1. State the principle of working of a meter bridge.

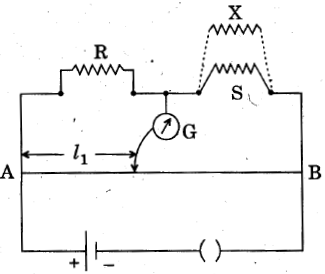

  2. In a meter bridge balance point is found at a distance l1 with resistances R and S as shown in the figure.
